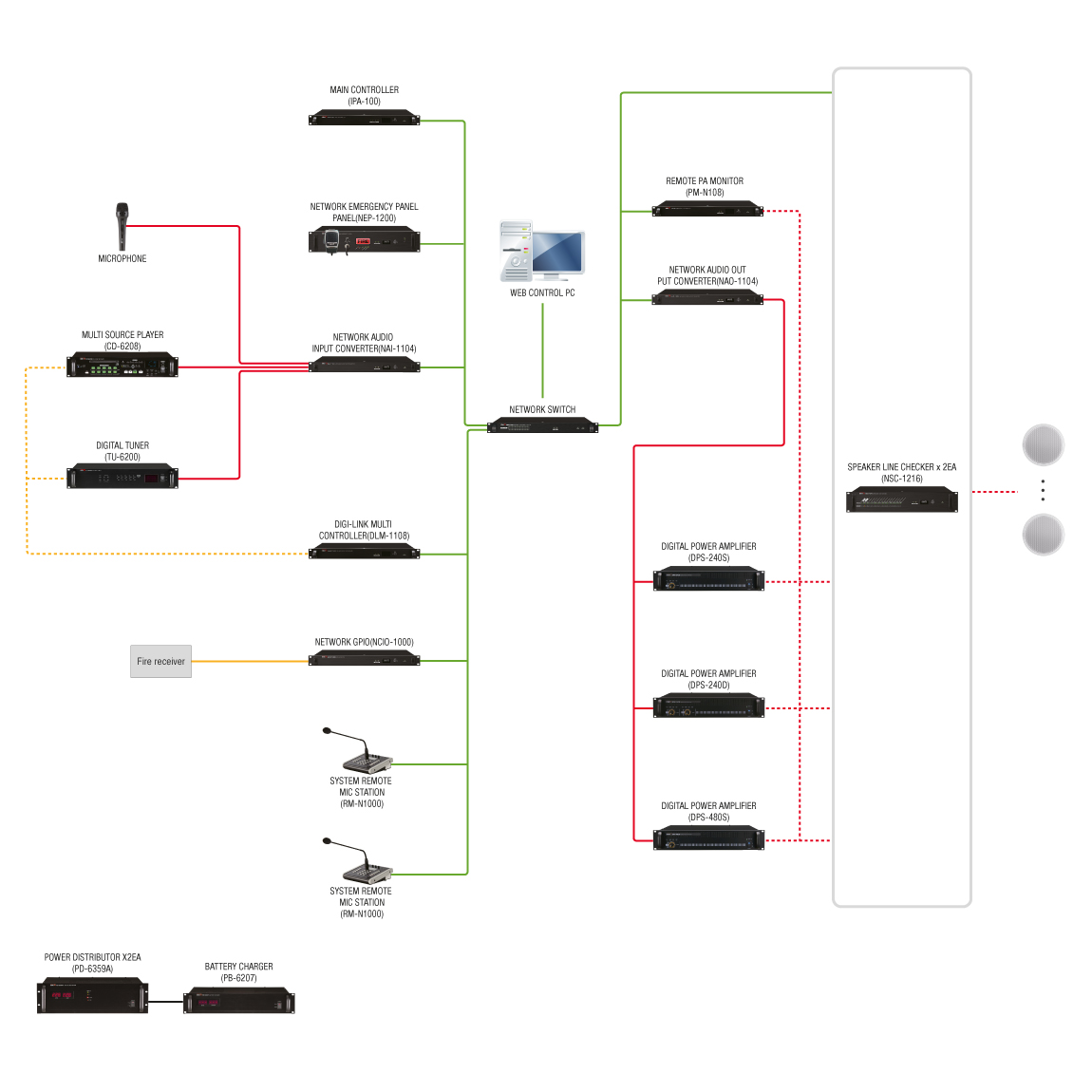

System configuration

시스템 구성도

Features

  • Broadcasting up to 24 different sound sources and 24 remote microphones at the same time by configuring lines by floor, zone, and purpose
  • Broadcasting system that can be expanded to 512 zones and diversified broadcasting for large-scale facilities such as hospitals, hotels, and resorts
  • It should be possible to easily control broadcasting through integrated management through the network, and it should be possible to control wired and wireless through the internal network.
  • TTS sound source broadcasting for announcements and schedule broadcasting control through network (MP3, TTS-8 languages supported)
  • Web-based integrated control software regardless of PC failure (PC, laptop, tablet can be used)
  • Network remote microphone broadcasting with digital transmission method (No far-distance noise or line degradation)
  • Real-time short detection function (automatically cut off the corresponding line in case of short circuit)
  • Built-in protection circuit in case of earth fault and reverse voltage of speaker line (when applying DPX series amplifier)
  • Applied a distributed network system to enable integrated management of multiple buildings with a small number of people

Device Components

Device name Standard Unit Quantity Model name
AUDIO MIXER 16in/4out EA 1 MX-1646D
LINEARRAY SPEAKER 60/450W EA 8 CLA-8K
LINEARRAY SUBWOOFER 800W EA 2 CLA-18SK
LINEARRAY SPEAKER FRAME STEEL EA 2 CLA-8K FRAME
CHAIN BLOCK 0.5ton EA 4
FRONT FILL SPEAKER 200W EA 2 HE08
STAGE MO. SPEAKER 400W EA 2 SM12
SPEAKER EXT. CABLE L-10m EA 2
POWERED SPEAKER 170W EA 2 CR5
POWER AMP & DSP 1200W x 4CH EA 3 DSA-2000Q
MULTI SOURCE PLAYER VIRTUAL CD EA 1 CD-6208
WIRELESS RECEIVER 900MHz, 2CH EA 1 WR-M92L
WIRELESS HAND MIC 900MHz EA 1 WH-M91L
WIRELESS PIN MIC 900MHz EA 1 WB-M91L
WIRELESS ANTENNA 900MHz EA 2 EPA-9001
MICROPHONE DYNAMIC EA 2 MH80
MICROPHONE CONDENSER EA 1 MC41P
MIC EXT. CABLE L-10m EA 3
MIC STAND BOOM TYPE EA 1 BS-4
MIC STAND FLOOR TYPE EA 1 FS-3
MIC STAND TABLE TYPE(원형) EA 1 TSG-1
MIC JACK BOX 2CCT EA 3
SPEAKER JACK BOX 2CCT EA 2
POWER DISTRIBUTOR AC 9CH EA 1 SPAC-S9
