Commercial

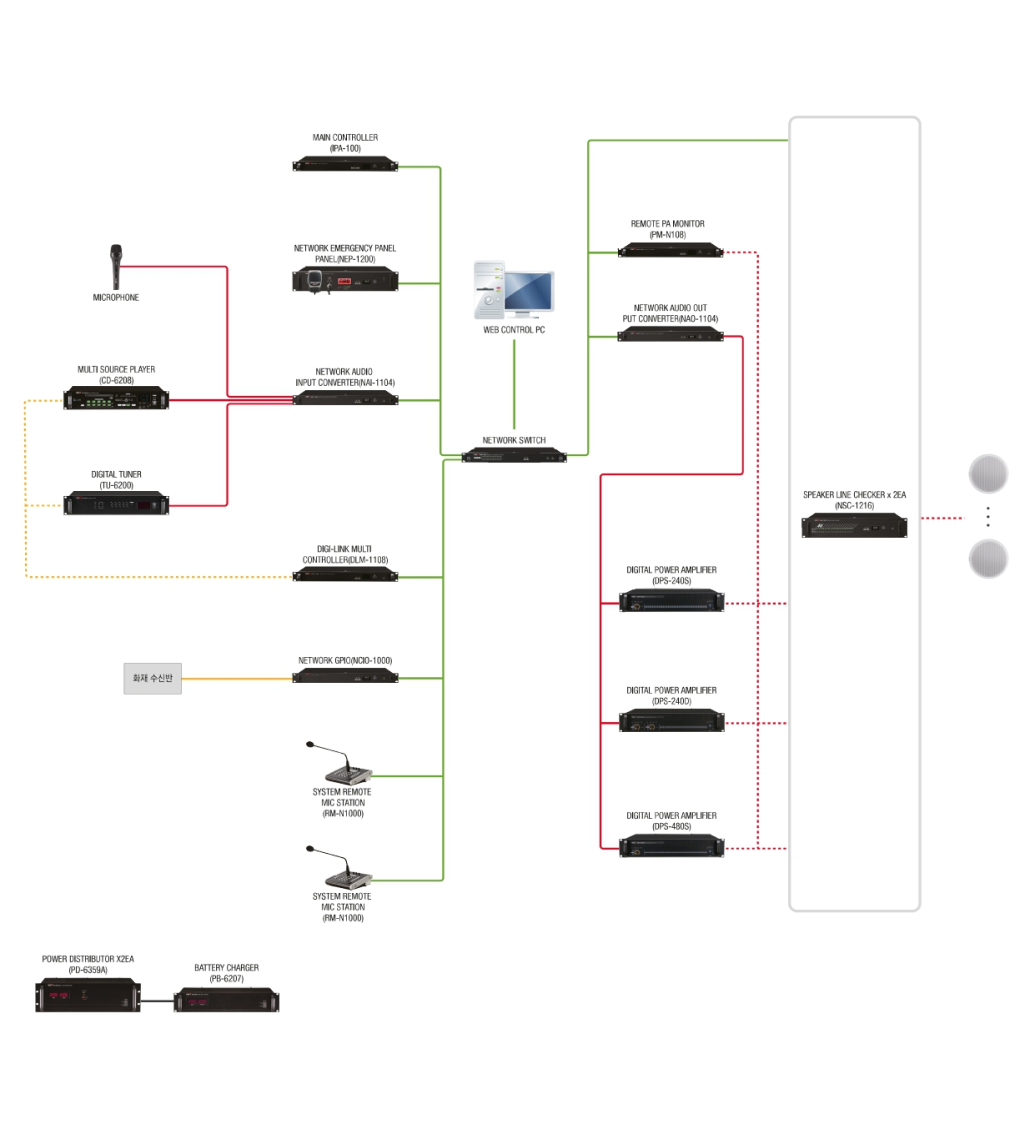

System configuration

시스템 구성도

Features

  • Broadcasting up to 24 different sound sources and 24 remote microphones at the same time by configuring lines by floor, zone, and purpose
  • Broadcasting system that can be expanded to 512 zones and diversified broadcasting for large-scale facilities such as hospitals, hotels, and resorts
  • It should be possible to easily control broadcasting through integrated management through the network, and it should be possible to control wired and wireless through the internal network.
  • TTS sound source broadcasting for announcements and schedule broadcasting control through network (MP3, TTS-8 languages supported)
  • Web-based integrated control software regardless of PC failure (PC, laptop, tablet can be used)
  • Network remote microphone broadcasting with digital transmission method (No far-distance noise or line degradation)
  • Real-time short detection function (automatically cut off the corresponding line in case of short circuit)
  • Built-in protection circuit in case of earth fault and reverse voltage of speaker line (when applying DPX series amplifier)
  • Applied a distributed network system to enable integrated management of multiple buildings with a small number of people

Device Components

You can check it by moving it from side to side.
Device name Standard Unit Quantity Model name
NETWORK CONTROL SERVER SERVER EA 1 IPA-100
NETWORK GPIO CONTACT 16CH EA 1 NCIO-1000
NETWORK AUDIO INPUT CONVERTER 4CH EA 1 NAI-1104
NETWORK AUDIO OUTPUT CONVERTER 4CH EA 1 NAO-1104
SPEAKER LINE CHECKER 16CH EA 2 NSC-1216
DIGI-LINK MULTI CONTROLLER DIGI-LINK EA 1 DLM-1108
NETWORK EMERGENCY PANEL TCP/IP EA 1 NEP-1200
CONTROL PC CONTROL EA 1 TC-6000
SWITCHING HUB L2, 16port EA 1
MULTI SOURCE PLAYER VIRTUAL CD EA 1 CD-6208
DIGITAL TUNER AM/FM EA 1 TU-6200
REMOTE PA MONITOR TCP/IP EA 1 PM-N108
POWER AMP 240W x 1CH EA 1 DPS-24S
POWER AMP 240W x 2CH EA 1 DPS-240D
POWER AMP 480W x 1CH EA 1 DPS-480S
SYSTEM REMOTE MIC STATION TCP/IP EA 2 RM-N1000
POWER DISTRIBUTOR AC/DC EA 2 PD-6359A
BATTERY CHARGER AUTO EA 1 PB-6207
