Exercise

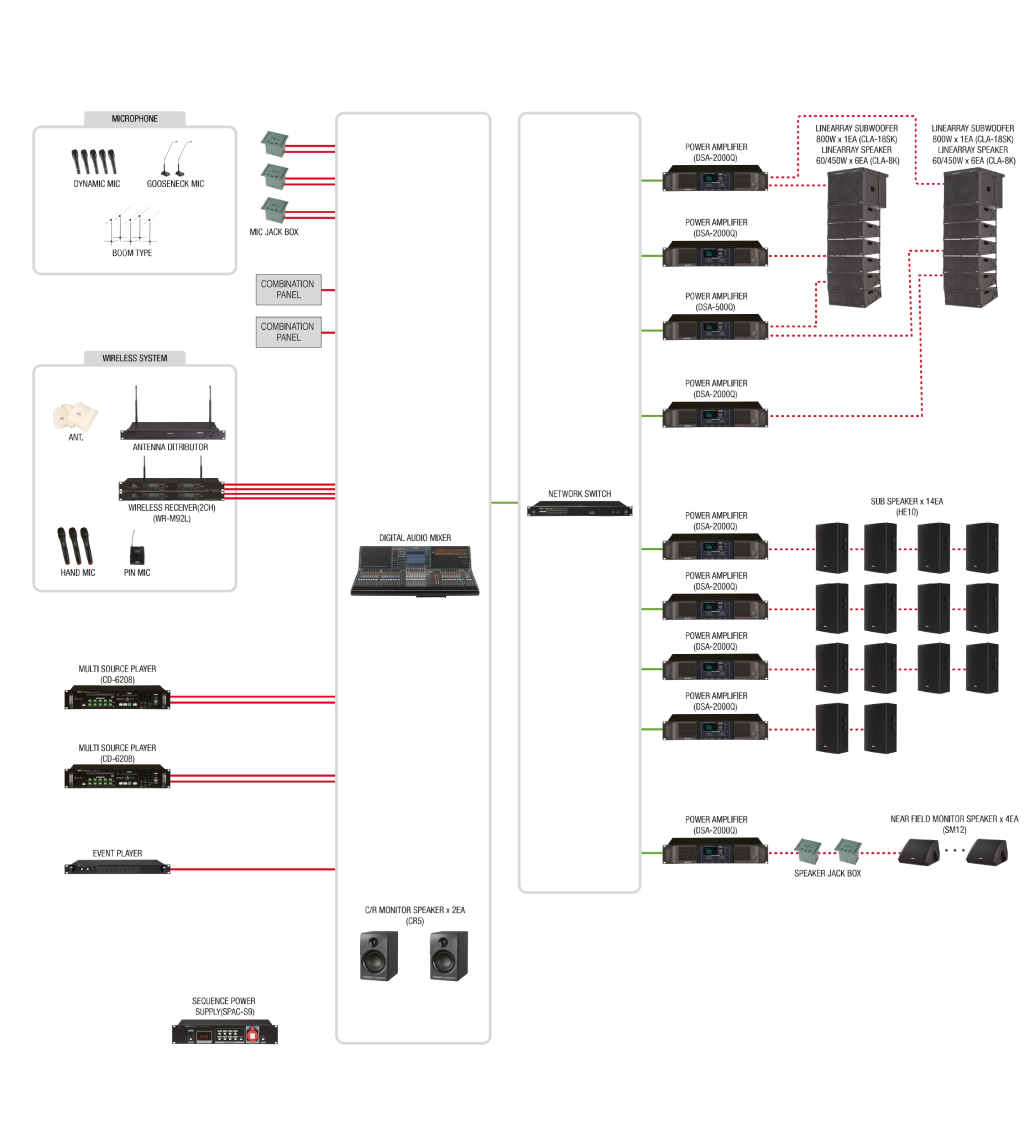

System configuration

시스템 구성도

Features

  • Application of line array for field considering spatial and architectural features and multiple point speakers for audience
  • Digital mixer for controlling and controlling multiple sound sources
  • Prevents noise from the line and secures high-quality output through digital transmission between the mixer and the amplifier
  • Provides optimal audio with audio settings according to space with a digital amplifier with built-in DPS
  • Composition of wired and wireless microphone system and infrastructure for various events
  • Installation of separate speakers for annexes and podiums at event venues

Device Components

좌우로 움직여 확인하실 수 있습니다.
Device name Standard Unit Quantity Model name
DIGITAL AUDIO MIXER 32in/16out EA 1
LINEARRAY SPEAKER 60/450W EA 12 CLA-8K
LINEARRAY SUBWOOFER 800W EA 2 CLA-18SK
LINEARRAY SPEAKER FRAME STEEL EA 2 CLA-8K FRAME
SUB SPEAKER 250W EA 14 HE10
SPEAKER EXT. CABLE 400W EA 4 SM12
C.R MONITOR SPEAKER 170W EA 2 CR5
POWER AMP & DSP (WOOFER) 1200W x 4CH EA 1 DSA-2000Q
POWER AMP & DSP (MAIN LF) 1200W x 4CH EA 2 DSA-2000Q
POWER AMP & DSP (MAIN HF) 300W x 4CH EA 1 DSA-500Q
POWER AMP & DSP (DELAY) 1200W x 4CH EA 4 DSA-2000Q
POWER AMP & DSP (MONITOR) 1200W x 4CH EA 1 DSA-2000Q
MULTI SOURCE PLAYER VIRTUAL CD EA 2 CD-6208
EVENT PLAYER SD MEMORY EA 1 EVP-1010
WIRELESS RECEIVER 900MHz, 2CH EA 2 WR-M92L
WIRELESS HAND MIC 900MHz EA 3 WH-M91L
WIRELESS PIN MIC 900MHz EA 1 WB-M91L
WIRELESS ANTENNA 900MHz EA 2 EPA-9001
ANTENNA DISTRIBUTOR 900MHz EA 1 WAD-900
MICROPHONE DYNAMIC EA 5 MH80
GOOSENECK MIC CONDENSER EA 2 MG18
MIC STAND GOOSENECK TYPE EA 2 MGB-C1
MIC STAND BOOM TYPE EA 5 BS-4
CONSOLE DESK 2BAY EA 1
POWER DISTRIBUTOR AC 9CH EA 2 SPAC-S9
