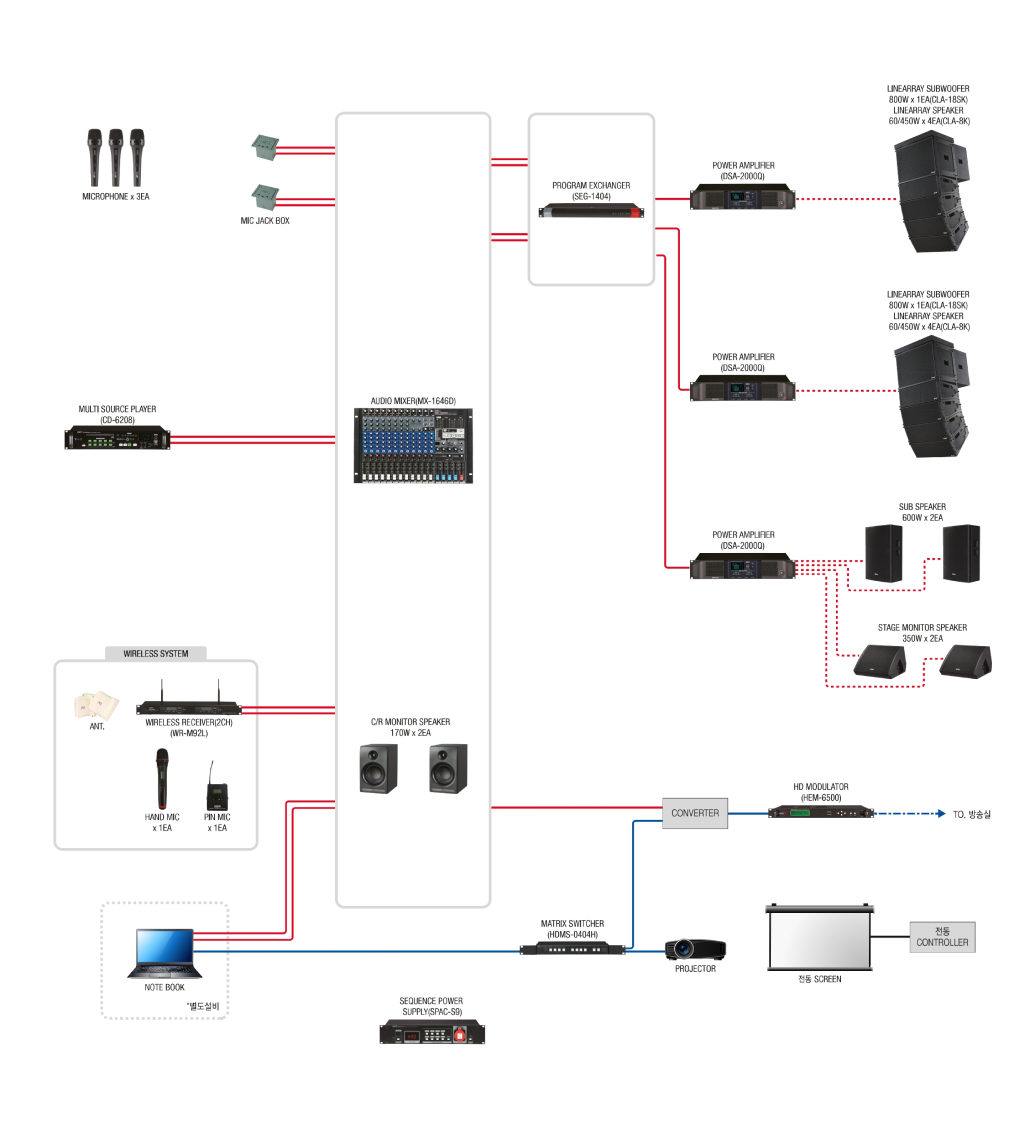

System configuration
Features
- To ensure large-scale events, sound pressure and clarity are secured by installing a high-powered speaker system and auxiliary speakers
- Volume and timbre control through audio mixer and sources such as wired and wireless microphones
- Stage monitor speaker for stage events
- Image projector and motorized screen to provide various contents of media
- Transmitting device that can transmit events in the multi-purpose auditorium to each classroom through the broadcasting room
Device Components
Device name | Standard | Unit | Quantity | Model name |
---|---|---|---|---|
ANALOG AUDIO MIXER | 16CH | EA | 1 | MX-1646D |
DIGITAL SIGNAL PROCESSOR | 4 IN / 8 OUT | EA | 1 | CSP-4.8 |
LINEARRAY SPEAKER | 60/450W | EA | 8 | CLA-8K |
LINEARRAY SUBWOOFER | 800W | EA | 2 | CLA-18SK |
LINEARRAY SPEAKER FRAME | STEEL | EA | 2 | CLA-8K FRAME |
CHAIN BLOCK | 1ton | EA | 4 | CHAIN BLOCK-2 |
POWERED SPEAKER | 170W | EA | 2 | CR5 |
SPEAKER | 350W | EA | 2 | CMM-12K |
SPEAKER EXT. CABLE | L-10m | EA | 2 | |
SPEAKER | 600W | EA | 1 | PE15R |
SPEAKER | 600W | EA | 1 | PE15L |
SPEAKER BRACKET | STEEL | EA | 2 | SB-30HA |
DIGITAL AMPLIFIER | 1200W x 4CH | EA | 3 | DSA-2000Q |
WIRELESS RECEIVER | 900MHz / 2CH | EA | 1 | WR-M92L |
WIRELESS HAND MIC | 900MHz | EA | 1 | WH-M91L |
WIRELESS BELT MIC | 900MHz | EA | 1 | WB-M91L |
WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CDR-01 |
MICROPHONE | DYNAMIC | EA | 3 | MH80 |
MICROPHONE | DYNAMIC | EA | 2 | MG18 |
MICROPHONE BASE | STEEL | EA | 2 | MGM-C1 |
순차전원기 | AC 9CH | EA | 2 | SPAC-S9 |
MODULATOR | HD | EA | 1 | HEM-6300 |
VIDEO CONVERTER | HDMI+AUDIO to HDMI | EA | 1 | HAM-100 |
A/V MATRIX SWITCHER | HD | EA | 1 | HDMS-0404H |
PROGRAM EXCHANGER | 4CH | EA | 1 | SEG-1404 |
CABINET RACK | 19" | EA | 1 | PA-401D |
AV CONVERTER | HDMI TO UTP (TX/RX) | EA | 2 |
