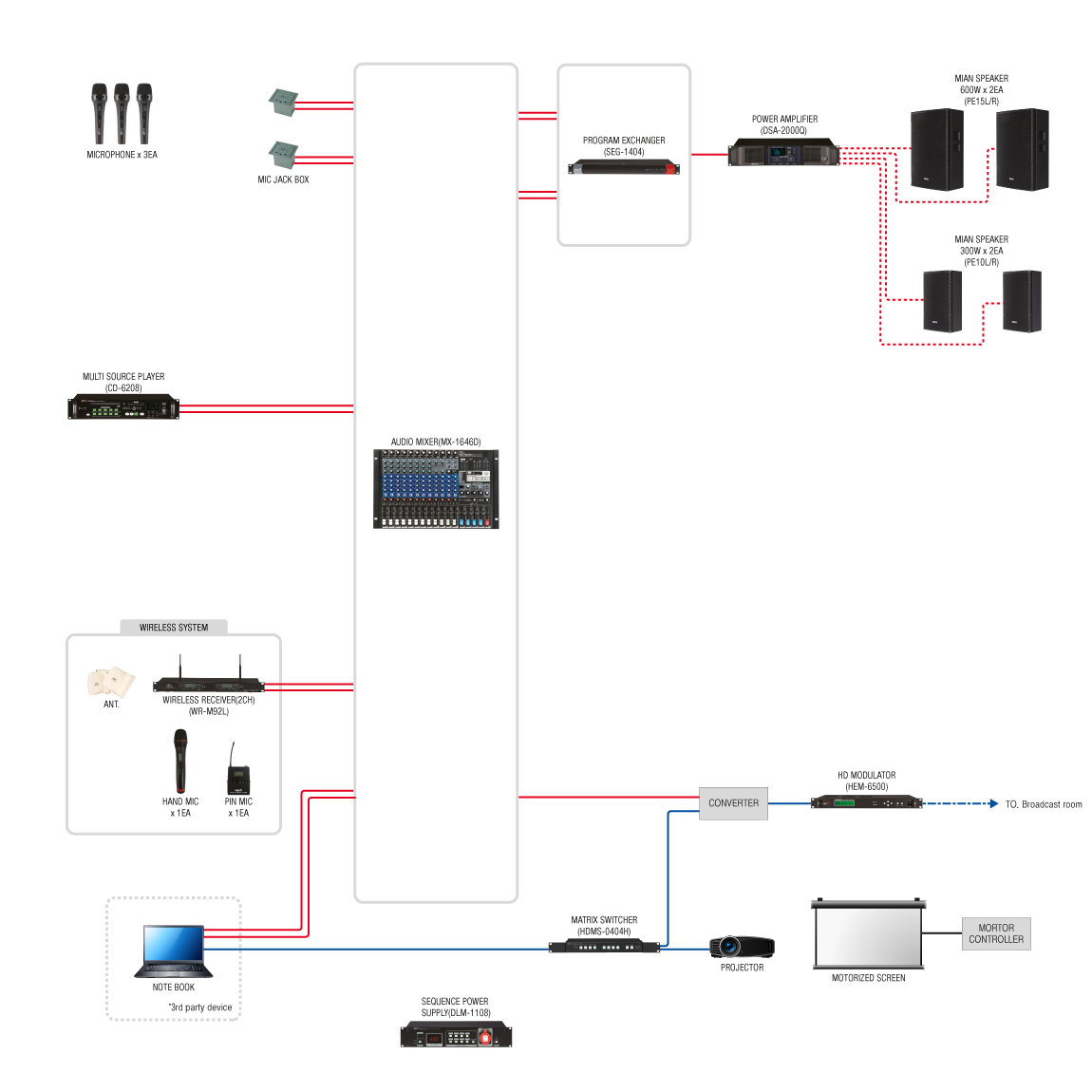

System configuration
Features
- 8-inch or 5-inch line array speaker suitable for the size of the space, applied depending on the space
- Securing even sound pressure throughout the audience by applying sub-speakers according to the space
- Control volume and timbre for each source by applying an audio mixer that can control audio sources
- Application of wireless microphone and wired microphone infrastructure that can be used for various events
- Projector and motorized screen to provide video content
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| AUDIO MIXER | 16in/4out | EA | 1 | MX-1646D |
| LINEARRAY SPEAKER | 60/450W | EA | 8 | CLA-8K |
| LINEARRAY SUBWOOFER | 800W | EA | 2 | CLA-18SK |
| LINEARRAY SPEAKER FRAME | STEEL | EA | 2 | CLA-8K FRAME |
| CHAIN BLOCK | 0.5ton | EA | 4 | |
| FRONT FILL SPEAKER | 200W | EA | 2 | HE08 |
| STAGE MO. SPEAKER | 400W | EA | 2 | SM12 |
| SPEAKER EXT. CABLE | L-10m | EA | 2 | |
| POWERED SPEAKER | 170W | EA | 2 | CR5 |
| POWER AMP & DSP | 1200W x 4CH | EA | 3 | DSA-2000Q |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CD-6208 |
| WIRELESS RECEIVER | 900MHz, 2CH | EA | 1 | WR-M92L |
| WIRELESS HAND MIC | 900MHz | EA | 1 | WH-M91L |
| WIRELESS PIN MIC | 900MHz | EA | 1 | WB-M91L |
| WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| MICROPHONE | DYNAMIC | EA | 2 | MH80 |
| MICROPHONE | CONDENSER | EA | 1 | MC41P |
| MIC EXT. CABLE | L-10m | EA | 3 | |
| MIC STAND | BOOM TYPE | EA | 1 | BS-4 |
| MIC STAND | FLOOR TYPE | EA | 1 | FS-3 |
| MIC STAND | TABLE TYPE(원형) | EA | 1 | TSG-1 |
| MIC JACK BOX | 2CCT | EA | 3 | |
| SPEAKER JACK BOX | 2CCT | EA | 2 | |
| POWER DISTRIBUTOR | AC 9CH | EA | 1 | SPAC-S9 |
