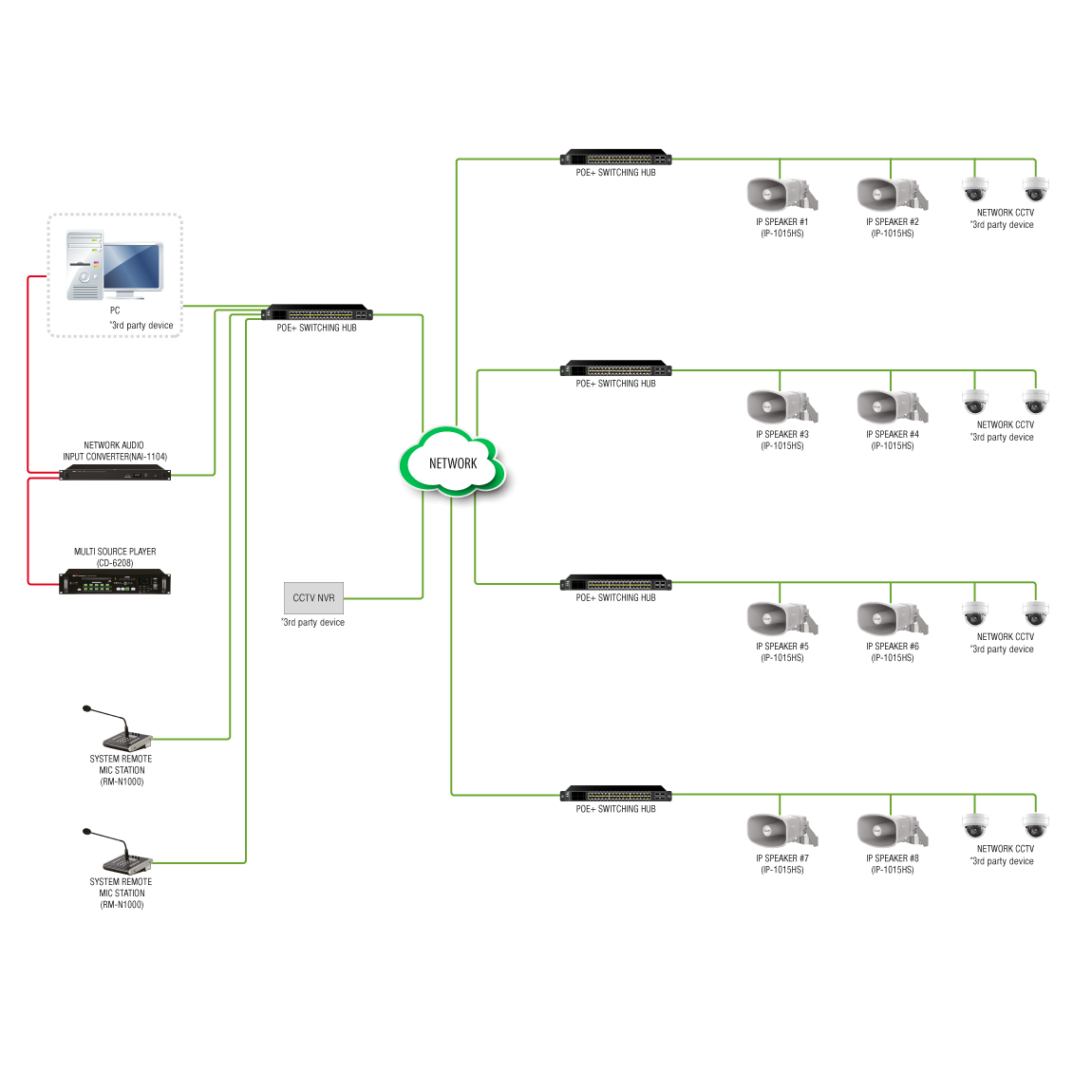

System configuration
Features
- It is a network-based broadcasting speaker that can be used by connecting to a PoE switch without any additional equipment.
- Equipped with an amplifier and sound source playback function, no additional hardware is required
- It is a dedicated operating program that broadcasts sound source broadcasting, control, schedule broadcasting, and emergency sound source for each speaker.
- Wired and wireless control is possible with devices such as PCs and tablets within the network without installing a separate program
- Automatic warning broadcasting and announcement broadcasting through CCTV contact reception
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| NETWORK AUDIO INPUT CONVERTER | 4CH | EA | 1 | NAI-1104 |
| SWITCHING HUB | L2, 16port | EA | 1 | POE+ SWITCHING HUB |
| CONTROL PC | CONTROL | EA | 1 | CONTROL PC |
| LED MONITOR | 24" | EA | 1 | LED MONITOR |
| NETWORK HORN SPEAKER | PoE+/PoE | EA | 8 | IP-1015HS |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CD-6208 |
| SYSTEM REMOTE MIC STATION | TCP/IP | EA | 2 | RM-N1000 |
| POWER DISTRIBUTOR | AC/DC | EA | 1 | PD-6359A |
