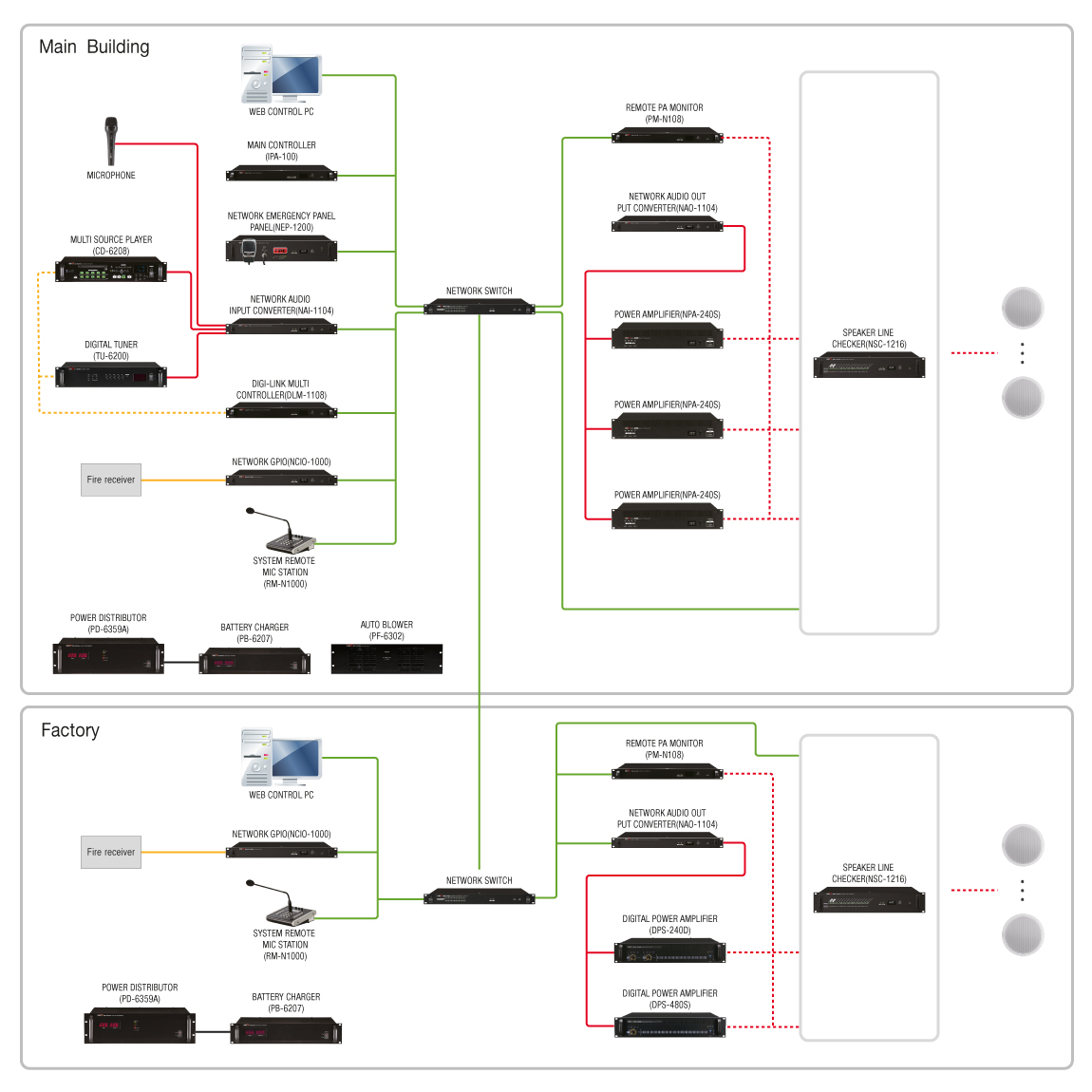

System configuration
Features
- Composed of a single broadcasting system through a network between the main management building and the factory building
- Efficient line construction by transmitting audio and control signals through LAN and optical cables based on network
- Since it can be expanded only with network lines, the system can be easily expanded at a low cost in the future
- Integrated management of multiple buildings with a small number of operators as an integrated management system for each building
- Real-time monitoring of remote equipment and checking the playback status of sound sources over the network, enabling prompt action in case of an error
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| NETWORK CONTROL SERVER | SERVER | EA | 1 | IPA-100 |
| NETWORK GPIO | CONTACT 16CH | EA | 1 | NCIO-1000 |
| NETWORK AUDIO INPUT CONVERTER | 4CH | EA | 1 | NAI-1104 |
| NETWORK AUDIO OUTPUT CONVERTER | 4CH | EA | 1 | NAO-1104 |
| SPEAKER LINE CHECKER | 16CH | EA | 1 | NSC-1216 |
| DIGI-LINK MULTI CONTROLLER | DIGI-LINK | EA | 1 | DLM-1108 |
| NETWORK EMERGENCY PANEL | TCP/IP | EA | 1 | NEP-1200 |
| CONTROL PC | CONTROL | EA | 1 | TC-6000 |
| SWITCHING HUB | L2, 16port | EA | 1 | |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CD-6208 |
| DIGITAL TUNER | AM/FM | EA | 1 | TU-6200 |
| REMOTE PA MONITOR | TCP/IP | EA | 1 | PM-N108 |
| POWER AMP | 240W x 1CH | EA | 3 | DPS-240S |
| SYSTEM REMOTE MIC STATION | TCP/IP | EA | 1 | RM-N1000 |
| POWER DISTRIBUTOR | AC/DC | EA | 2 | PD-6359A |
| BATTERY CHARGER | AUTO | EA | 1 | PB-6207 |
| NETWORK GPIO | CONTACT 16CH | EA | 1 | NCIO-1000 |
| NETWORK AUDIO OUTPUT CONVERTER | 4CH | EA | 1 | NAO-1104 |
| SPEAKER LINE CHECKER | 16CH | EA | 1 | NSC-1216 |
| CONTROL PC | CONTROL | EA | 1 | CONTROL PC |
| SWITCHING HUB | L2, 16port | EA | 1 | |
| REMOTE PA MONITOR | TCP/IP | EA | 1 | PM-N108 |
| POWER AMP | 240W x 2CH | EA | 1 | DPS-240S |
| POWER AMP | 480W x 1CH | EA | 1 | DPS-480S |
| SYSTEM REMOTE MIC STATION | TCP/IP | EA | 1 | RM-N1000 |
| POWER DISTRIBUTOR | AC/DC | EA | 2 | PD-6359A |
| BATTERY CHARGER | AUTO | EA | 1 | PB-6207 |
