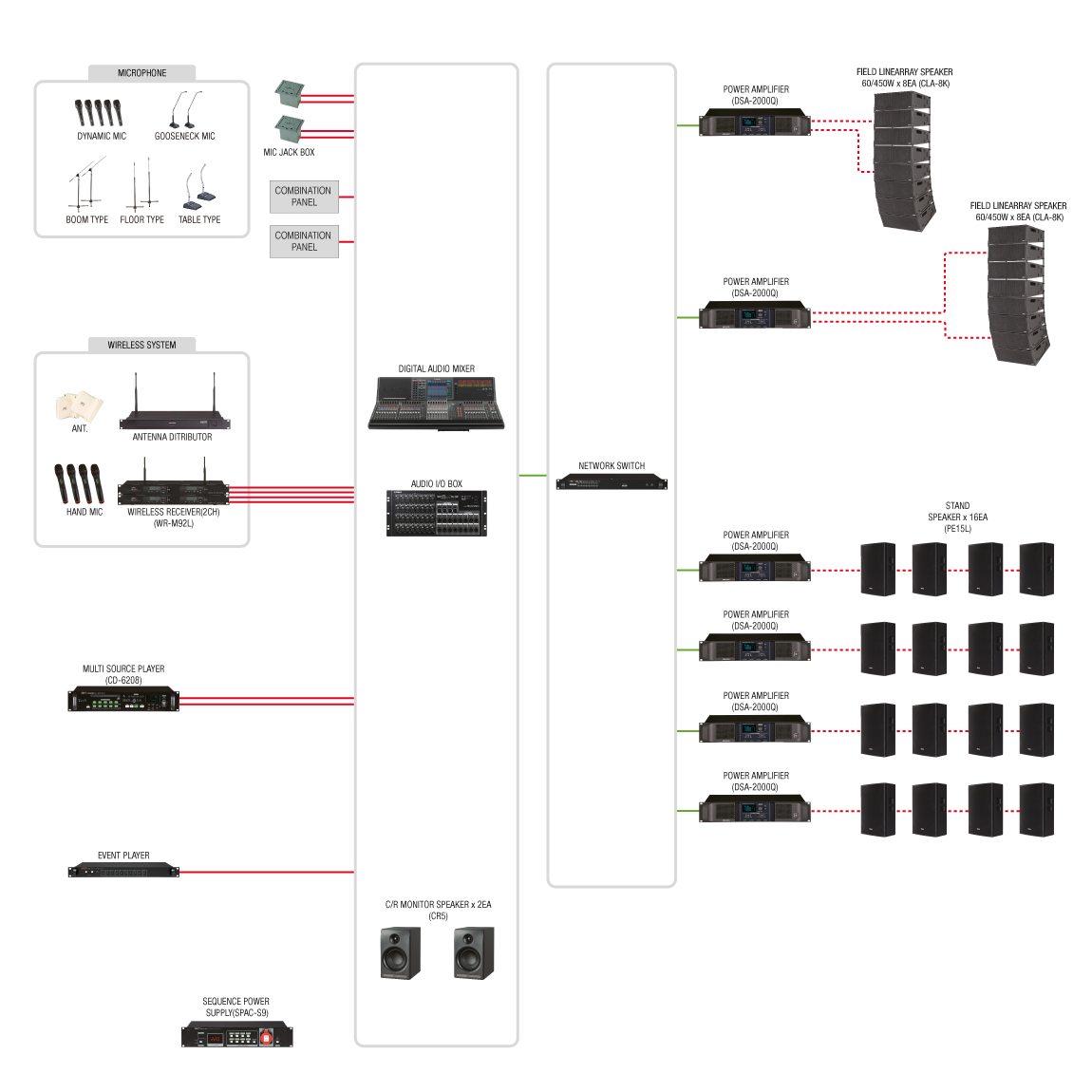

System configuration
Features
- Install high-powered speakers in a location that does not cause blind spots in the wide audience
- Main line array speakers in the field space for opening and closing ceremonies
- Distributed amplifier application and DSP built-in amplifier through digital transmission to distant speakers
- Multi-channel digital mixer to control multiple speaker zones
- Microphone infrastructure and wireless microphone system for opening and closing ceremonies
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| DIGITAL MIXER | Digltal Mixing Console (72MO/8ST) | EA | 1 | |
| AUDIO I/O BOX | Rack I/O 32in /24out | EA | 1 | |
| LINEARRAY SPEAKER | 60/450W | EA | 16 | CLA-8K |
| LINEARRAY SPEAKER FRAME | STEEL | EA | 2 | CLA-8K FRAME |
| SPEAKER | 600W | EA | 16 | PE15L |
| SPEAKER BRACKET | STEEL | EA | 16 | SBT-9 |
| POWERED SPEAKER | 170W | EA | 2 | CR5 |
| POWER AMP & DSP | 1200W x 4CH | EA | 6 | DSA-2000Q |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 1 | CD-6208 |
| EVENT PLAYER | SD MEMORY | EA | 1 | EVP-1010 |
| WIRELESS RECEIVER | 900MHz, 2CH | EA | 2 | WR-M92L |
| WIRELESS HAND MIC | 900MHz | EA | 4 | WH-M91L |
| WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| ANTENNA DISTRIBUTOR | 900MHz | EA | 1 | WAD-900 |
| MICROPHONE | DYNAMIC | EA | 5 | MH80 |
| GOOSENECK MIC | CONDENSER | EA | 2 | MG18 |
| MIC STAND | GOOSENECK TYPE | EA | 2 | MGB-C1 |
| MIC STAND | BOOM TYPE | EA | 2 | BS-4 |
| MIC STAND | FLOOR TYPE | EA | 2 | FS-3 |
| MIC STAND | TABLE TYPE | EA | 2 | TS-1 |
| MIC JACK BOX | 2CCT | EA | 2 | |
| CONSOLE DESK | 2BAY | EA | 1 | |
| POWER DISTRIBUTOR | AC 9CH | EA | 2 | SPAC-S9 |
