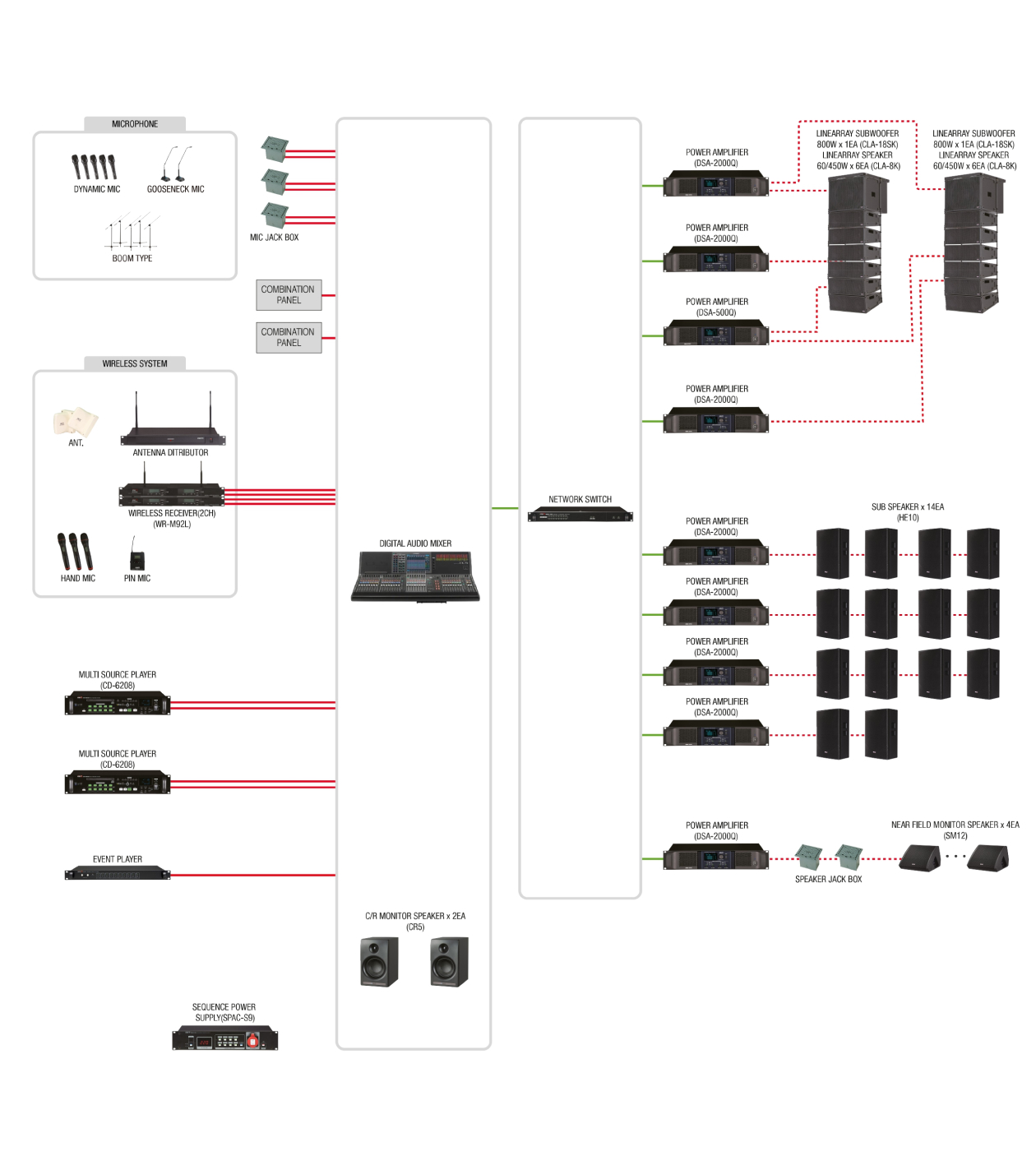

System configuration
Features
- Application of line array for field considering spatial and architectural features and multiple point speakers for audience
- Digital mixer for controlling and controlling multiple sound sources
- Prevents noise from the line and secures high-quality output through digital transmission between the mixer and the amplifier
- Provides optimal audio with audio settings according to space with a digital amplifier with built-in DPS
- Composition of wired and wireless microphone system and infrastructure for various events
- Installation of separate speakers for annexes and podiums at event venues
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| DIGITAL AUDIO MIXER | 32in/16out | EA | 1 | |
| LINEARRAY SPEAKER | 60/450W | EA | 12 | CLA-8K |
| LINEARRAY SUBWOOFER | 800W | EA | 2 | CLA-18SK |
| LINEARRAY SPEAKER FRAME | STEEL | EA | 2 | CLA-8K FRAME |
| SUB SPEAKER | 250W | EA | 14 | HE10 |
| SPEAKER EXT. CABLE | 400W | EA | 4 | SM12 |
| C.R MONITOR SPEAKER | 170W | EA | 2 | CR5 |
| POWER AMP & DSP (WOOFER) | 1200W x 4CH | EA | 1 | DSA-2000Q |
| POWER AMP & DSP (MAIN LF) | 1200W x 4CH | EA | 2 | DSA-2000Q |
| POWER AMP & DSP (MAIN HF) | 300W x 4CH | EA | 1 | DSA-500Q |
| POWER AMP & DSP (DELAY) | 1200W x 4CH | EA | 4 | DSA-2000Q |
| POWER AMP & DSP (MONITOR) | 1200W x 4CH | EA | 1 | DSA-2000Q |
| MULTI SOURCE PLAYER | VIRTUAL CD | EA | 2 | CD-6208 |
| EVENT PLAYER | SD MEMORY | EA | 1 | EVP-1010 |
| WIRELESS RECEIVER | 900MHz, 2CH | EA | 2 | WR-M92L |
| WIRELESS HAND MIC | 900MHz | EA | 3 | WH-M91L |
| WIRELESS PIN MIC | 900MHz | EA | 1 | WB-M91L |
| WIRELESS ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| ANTENNA DISTRIBUTOR | 900MHz | EA | 1 | WAD-900 |
| MICROPHONE | DYNAMIC | EA | 5 | MH80 |
| GOOSENECK MIC | CONDENSER | EA | 2 | MG18 |
| MIC STAND | GOOSENECK TYPE | EA | 2 | MGB-C1 |
| MIC STAND | BOOM TYPE | EA | 5 | BS-4 |
| CONSOLE DESK | 2BAY | EA | 1 | |
| POWER DISTRIBUTOR | AC 9CH | EA | 2 | SPAC-S9 |
