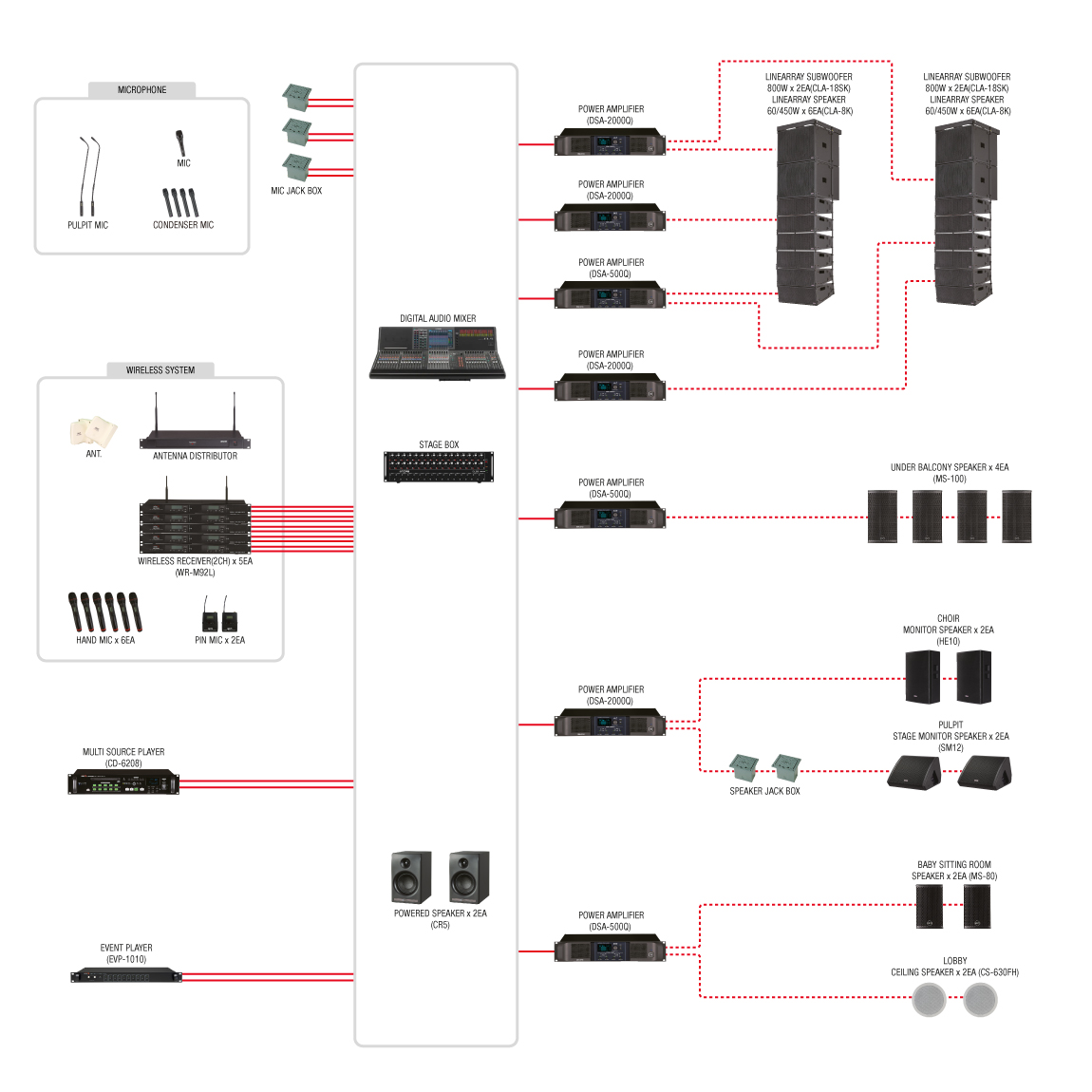

System configuration
Features
- Applied speaker system considering spatial and architectural features
- High power speaker with high output and frequency characteristics of concert hall level
- Multi-channel digital audio mixer that can control multiple instruments and choir sound sources
- Digital transmission infrastructure that minimizes noise generation
- Ensuring efficiency and operational convenience with a digital mixer with a built-in DSP
- Securing sufficient input for various events with a high-quality sound pickup microphone and multiple wireless microphones
- Installation of separate speakers for auxiliary rooms
Device Components
| Device name | Standard | Unit | Quantity | Model name |
|---|---|---|---|---|
| DIGITAL AUDIO MIXER | 32CH | EA | 1 | |
| STAGE-BOX | 32IN-16OUT | EA | 1 | |
| LINE ARRAY SPEAKER | 450W/60W | EA | 12 | CLA-8K |
| LINE ARRAY SPEAKER FRAME | 400W | EA | 2 | CLA-8K FRAME |
| LINE ARRAY SUBWOOFER | 800W | EA | 4 | CLA-18SK |
| UNDER BALCONY SPEAKER | 100W | EA | 4 | MS-100 |
| UNDER BALCONY BRACKET | STEEL | EA | 4 | MSB-100 |
| 자모실 SPEAKER | 80W | EA | 2 | MS-80 |
| SPEAKER BRACKET | STEEL | EA | 2 | MSB-80 |
| 강대상 STAGE MO. SPEAKER | 400W | EA | 2 | SM12 |
| 성가대 MONITOR SPEAKER | 400W | EA | 2 | HE10 |
| SPEAKER STAND | TRIPOD (1EA) | EA | 2 | TSS-3 |
| 로비 CEILING SPEAKER | 20W 2WAY, KS인증 | EA | 2 | CS-630FH |
| C/R MONITOR SPEAKER | 250W | EA | 2 | CR5 |
| LINE ARRAY SPEAKER POWER AMP | 1200W 4CH | EA | 2 | DSA-2000Q |
| LINE ARRAY SPEAKER POWER AMP | 300W 4CH | EA | 1 | DSA-500Q |
| LINE ARRAY SUBWOOFER POWER AMP | 1200W 4CH | EA | 1 | DSA-2000Q |
| UNDER BALCONY SPK. POWER AMP | 300W 4CH | EA | 1 | DSA-500Q |
| 자모실, 로비 SPEAKER POWER AMP | 300W 4CH | EA | 1 | DSA-500Q |
| 강대상, 성가대 SPEAKER POWER AMP | 1200W 4CH | EA | 1 | DSA-500Q |
| CD PLAYER | CD & USB | EA | 1 | CD-6208 |
| EVNET PLAYER | SD | EA | 1 | EVP-1010 |
| W/L HAND RECEIVER | 900MHz | EA | 5 | WR-M92L |
| W/L HAND MICROPHONE | 900MHz | EA | 5 | WH-M91L |
| W/L PIN MICROPHONE | 900MHz | EA | 4 | WB-M91L |
| W/L ANTENNA | 900MHz | EA | 2 | EPA-9001 |
| W/L ANT. DISTRIBUTOR | EA | 2 | WAD-900 | |
| 강대상 MICROPHONE | EA | 2 | MG21 | |
| 인도자 MICROPHONE | EA | 1 | MH80 | |
| CONDENSER MICROPHONE | EA | 4 | MC41P | |
| MIC JACK BOX | RM-01전용 | EA | 3 | |
| SPEAKER JACK BOX | 3BAY | EA | 3 | |
| POWER DISTRIBUTOR | 16in/4out | EA | 2 | SPAC-S9 |
