■ 1U Size Compact Design
■ 60W High Efficiency Digital Amp Circuit
■ SMPS Power Circuit
■ Volume control on INPUT 1~3 – enable to adjust each input channel level
■ Display the input signal of INPUT 1~3
■ Base and Treble Controls
■ Diverse Features -Phantom Mic Power, External MUTE, etc.
■ PRIORITY Function
■ MIX Configuration DIP switches
■ Without input signal for 25 Min, automatically converted to Master System standby Mode

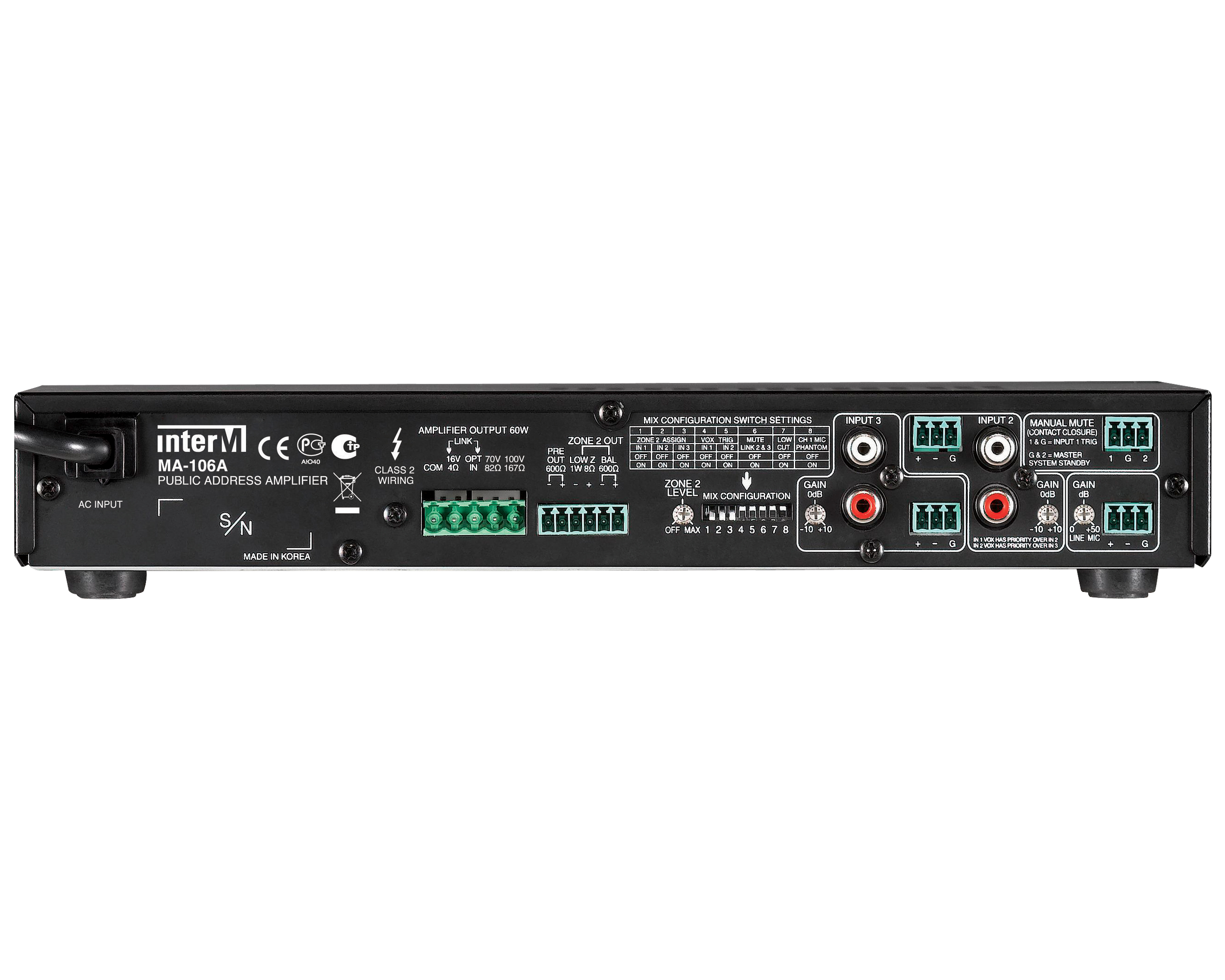

| MA-106A | |||
|---|---|---|---|---|
Rated Output Power (T.H.D 1%) | 60W(RMS) | |||
Output Voltage | EC & Associated, JAPAN | 4Ω/16V | 82Ω/70V | 167Ω/100V |
USA/CANADA & Associated | 4Ω/16V | 11Ω/25V | 82Ω/70V | |
Frequency Response (1W@1kHz) | Input 1, 2, 3 | +1/-3dB, 80Hz-15kHz | ||
T.H.D (60W@1kHz) | Less than 1% | |||
S/N Ratio (60W@1kHz A-weighted) | INPUT 1, 2, 3 | Better than 70dB | ||
Input Sensitivity | INPUT 1 | -10dBV to -50dBV | ||
INPUT 2, 3 | 0dBV to -20dBV | |||
Tone Control | BASS (100Hz) | ±10dB | ||
TREBLE (10kHz) | ±10dB | |||
Residual Noise | Master volume min | -65dB | ||
(Input 1-3 vol min, tone at center) | Master volume max | -55dB | ||
Zone 2 Output | Rated power 8Ω (RMS, THD 3%) | 1W | ||
BAL 600Ω | 2.4V | |||
PRE Out (input -10dBV) | 0dBV | |||
Mix Configuration Switches | SW1 | Zone 2 Assign Input 1 | ||
SW2 | Zone 2 Assign Input 2 | |||
SW3 | Zone 2 Assign input 3 | |||
SW4 | VOX Trigger Input 1 | |||
SW5 | VOX Trigger Input 2 | |||
SW6 | Mute Link Input 2 & 3 | |||
SW7 | Low-Cut, 400Hz 6dB/Oct. | |||
SW8 | INPUT1 Phantom Power, +18V | |||
Manual Mute Contact Closure | Pin 1 & G=Input 1 Mute Trigger | |||
Master System Standby Contact Closure | Pins G & 2=Power Standby | |||
Operating Temperature | -10°C ~ +40°C | |||
Power Source | 100–120VAC or 220–240VAC, 50/60Hz (Supplied AC mains transformer depends on country requirements) | |||
Power Consumption | 24W | |||
Weight (SET) | 3.1kg | |||
Dimensions (SET) | 300(W) x 44(H) x 230(D)mm | |||
