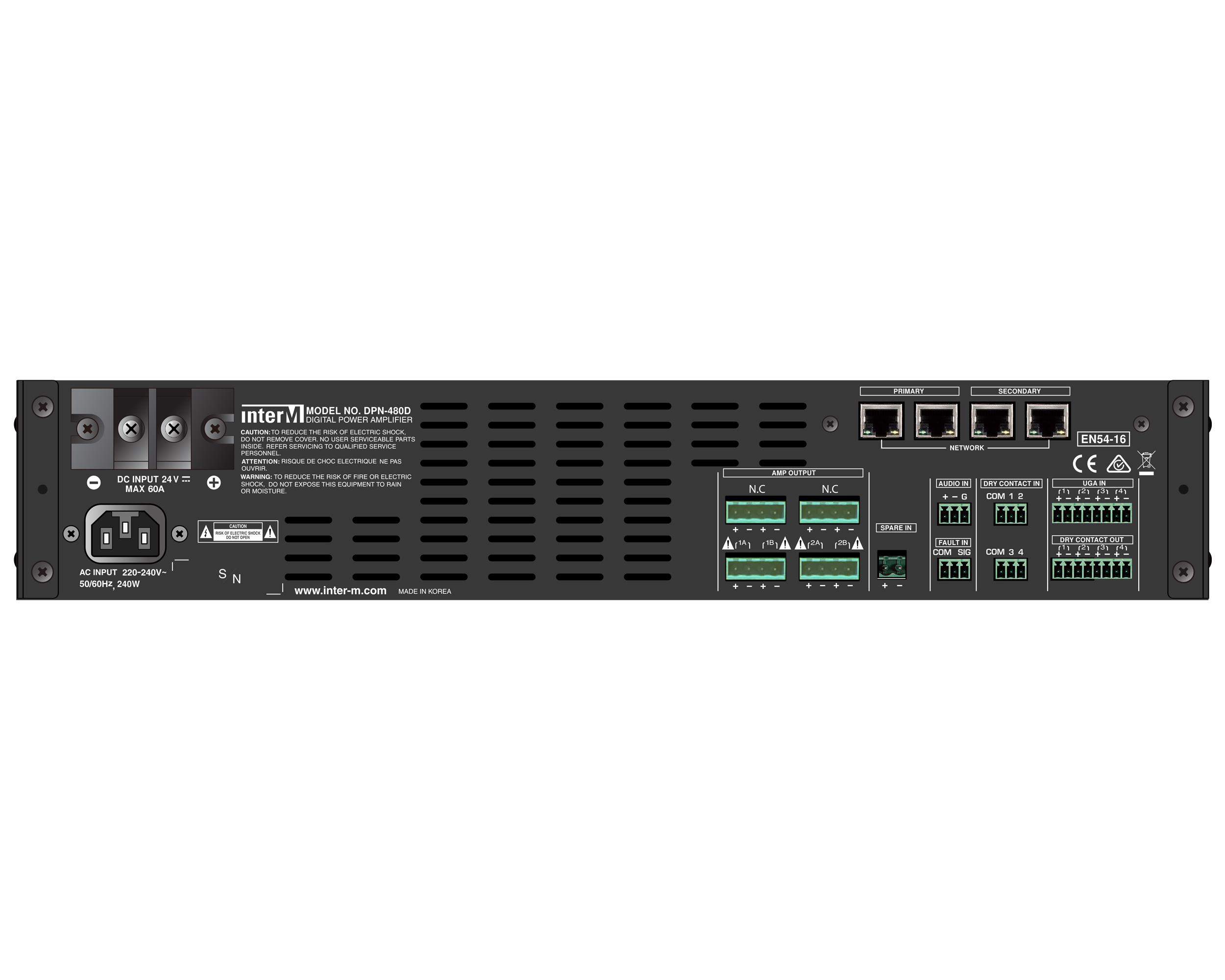

DPN-480D

Digital Power Amplifier

Download

  • Manual

  • Brochure

Product Features



480W 2CH network amplifier for EVAMATRIX



High-quality audio network transmission via Dante™



DSP processing for the audio



Web-based network communication and monitoring and control on GUI



Built in speaker line checker



Log history management



Compelte protection circuitry (overheat, output short circuit, overload and DC output protection)



Supports DC backup power



Supports UGA input and dry contact input per each channel



1 Audio-in available per each device

Product specification

 DPN-480D
Rated Power480W x 2CH
Output Voltage/Impedance100V/20.83Ω
Input Sensitivity5dBV
THD(Rated Power, 1kHz)Less than 1%
S/N(20kHz LPF, A-wtd)More than 85dB
Frequency Response(±3dB, 1W)20~20kHz
NetworkDanteTM redundantTM, Ethernet 100/1000 Base-T (RJ-45)
Operating Temperature-10~40
Power SourceAC 220-240V, 50/60Hz, DC 24V
Power Consumption240W
Weight (SET)9.7kg
Dimensions (SET)482(W) x 88(H) x 450(D)mm
