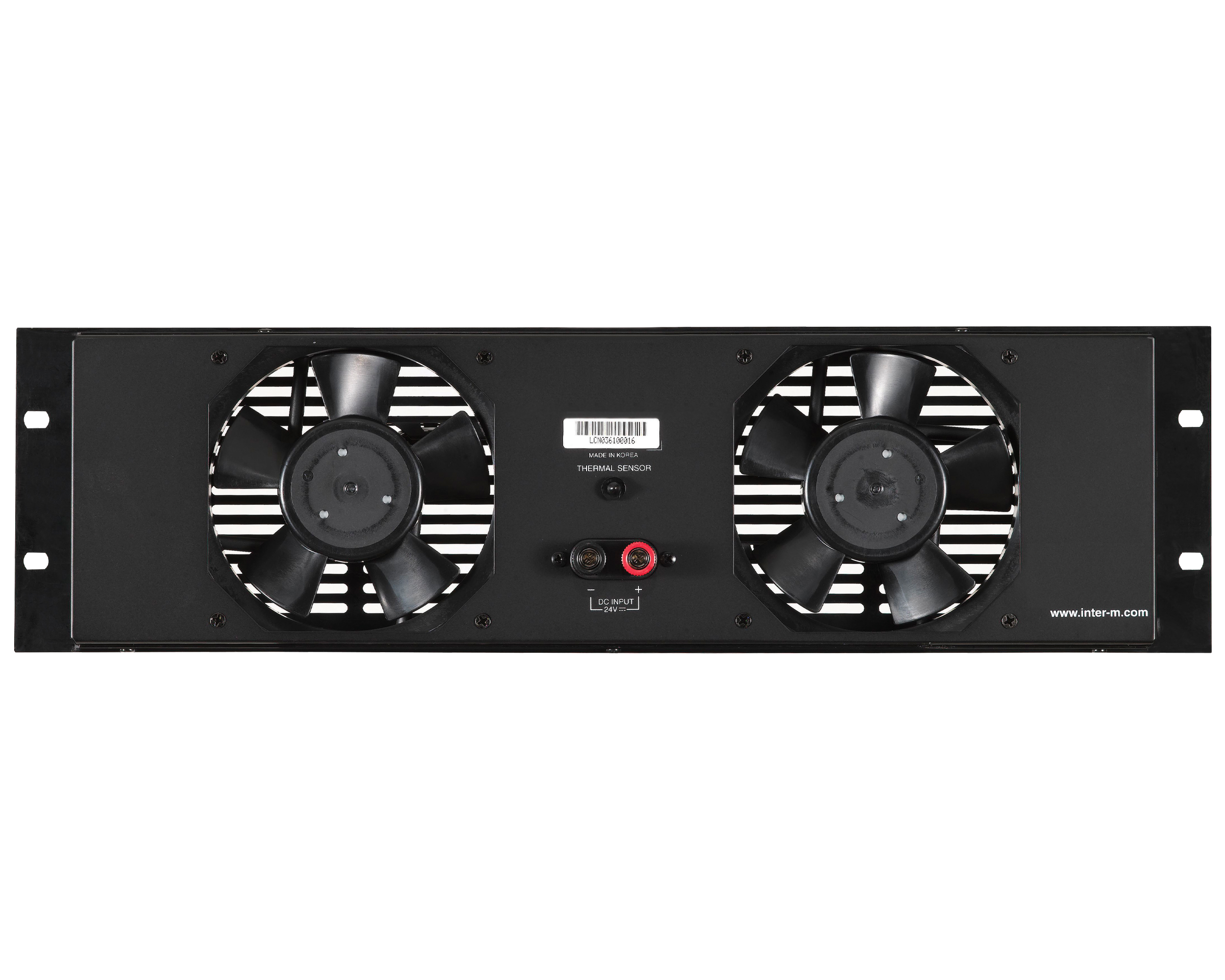

■ 60W Fan for PA Rack
Auto fan operates when the inside temperature of PA RACK goes up.
■ Manual mode operation
When it's manual mode, the fan operates always regardless of temperature.
■ Auto mode operation
When it’s auto mode, the fan operates at 35°C/95°F.
| PF-6302 | ||
|---|---|---|
| Operating Mode | Off/Manual/Auto | |
| Operating Temperature at Auto Mode | 35°C | |
| FAN | Current | Max. 240mA |
| Opeating Speed | 2600 RPM | |
| Air Flow | Max. 2.33m3/min | |
| Operation Temperature | -10°C ~ +40°C / 14°F~104°F | |
| Power Source | 24V DC | |
| Weight (SET) | 1.28kg/2.82lb | |
| Dimensions (SET) | 482(W)x132(H)x35(D)mm/19(W)x5.2(H)x1.4(D)in | |
