Brochure
SWS series is providing a natural and smooth sound with a variety of It fits to any places that announcements and BGM required such as schools, government office, hotels and etc. And it ensures the quality and durability by acquiring KS certification in the Korea's first.
■ High quality speaker driver produce detail and rich sound
■ Stylish and sleek design wall speaker
■ Harmonized with general structure when installed
■ Sound volume adjustable with attenuator (SWS-03A/10A)
| SWS-03A | ||
|---|---|---|
| Type | 6.5" Full-range Wall Speaker | |
| Driver | 6.5" | |
| Power Handling (IEC) | 3W | |
| Input Power | 100V | 3W / 2W / 1W |
| Nominal Impedance | 100V | 3.3kΩ / 5kΩ / 10kΩ |
| Power Selection | Rotary Switch | |
| Frequency Range (-20%) | 114Hz ~ 20kHz | |
| Sensitivity (1W/1m) | 88dB | |
| Maximum SPL | 93dB | |
| Nominal Dispersion (Conical) | 1kHz | 170˚ x 130˚ |
| 4kHz | 50˚ x 40˚ | |

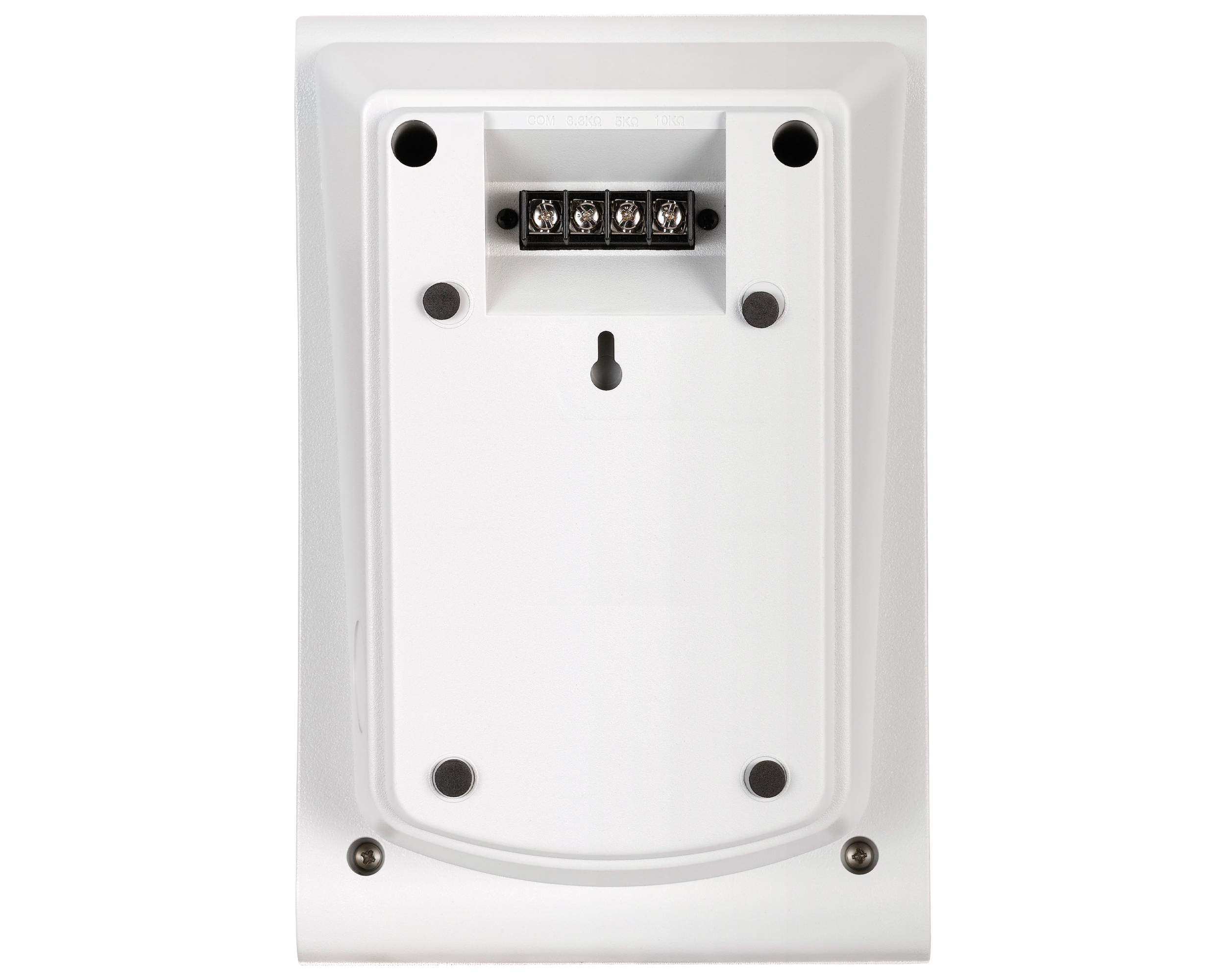

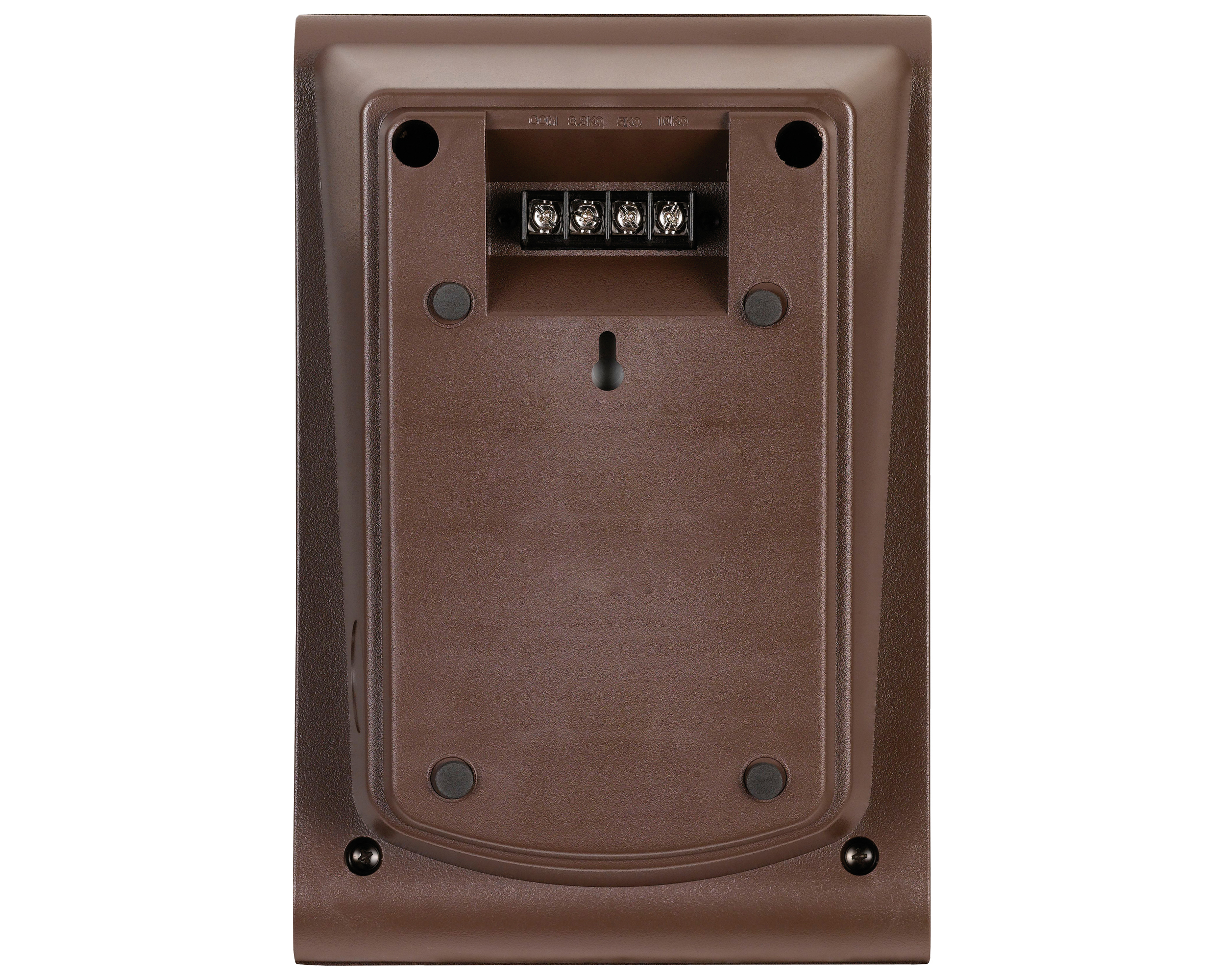

| Input connection | 4P Screw Terminal | |
| Enclosure Material | HIPS | |
| Enclosure Color | Brown/Ivory | |
| Grille Material | Jersey | |
| Grille Color | Brown/Ivory | |
| Weight (Set) | 1.2kg | |
| Dimensions (Net, Ø(WxH)xD, mm) | 182 x 274 x 120 | |
| Weather Resistant | - | |
| Flame Resistant | - | |
| Certification | - | |
| Included Accessories | Anchor bolt x 1 | |
