WS-203

Wall Speaker

Download

  • Manual

  • Brochure

Product Features

WS 200 series is providing a natural and smooth sound with a variety of it fits to any places that announcements and BGM required such as schools, government office, hotels and etc. And it ensures the quality and durability by acquiring KS certification in the Korea's first.



■ High quality speaker driver

■ Stylish and sleek design

■ Easy installation

■ Outdoor speaker

■ High reliability

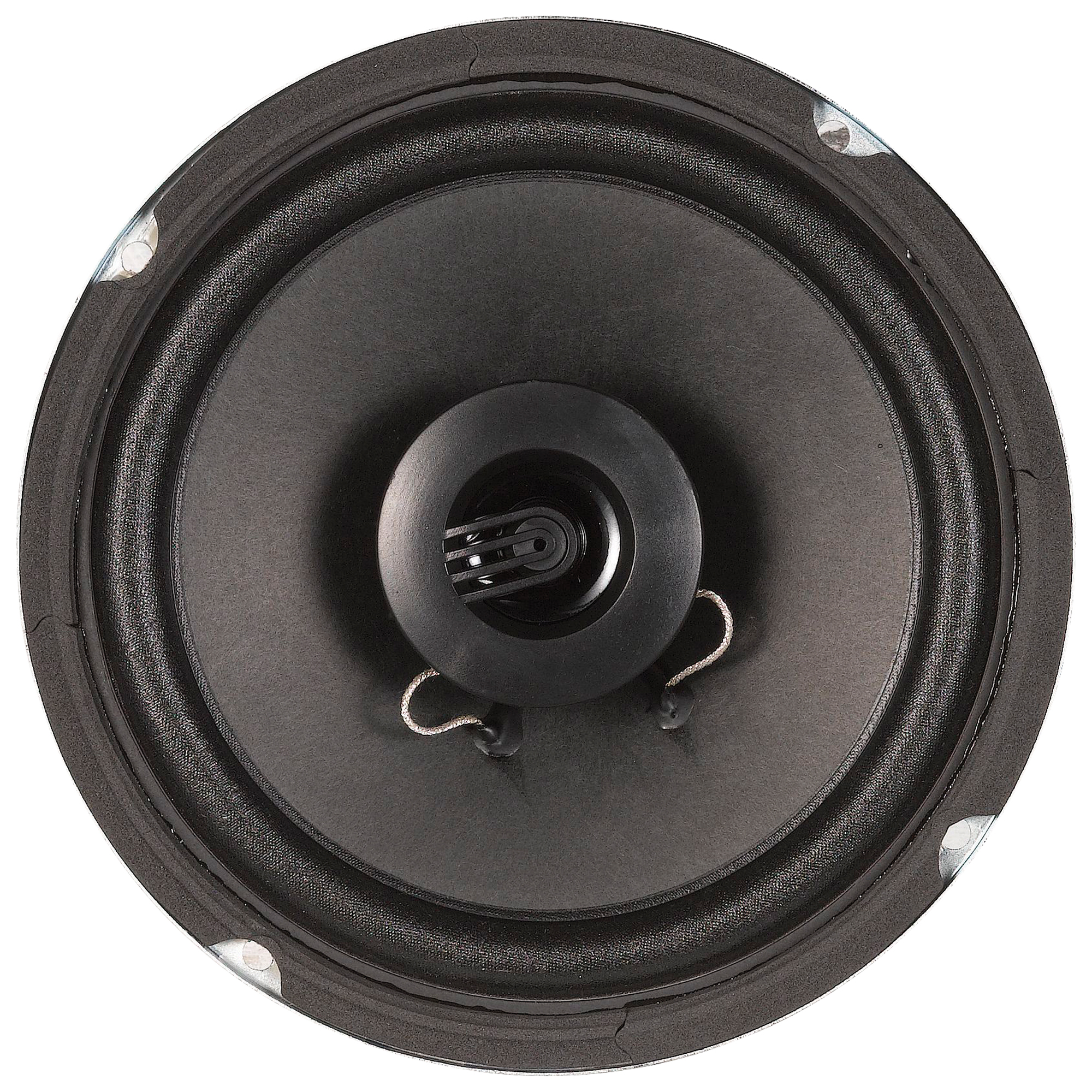

■ WS-203/210 : 1Way Speaker system (6.5'' Full-range, adapt SUB-CONE)

■ WS-230 : 2Way Speaker system (6.5'' Full-range, adapt SUB-CONE)

Product specification

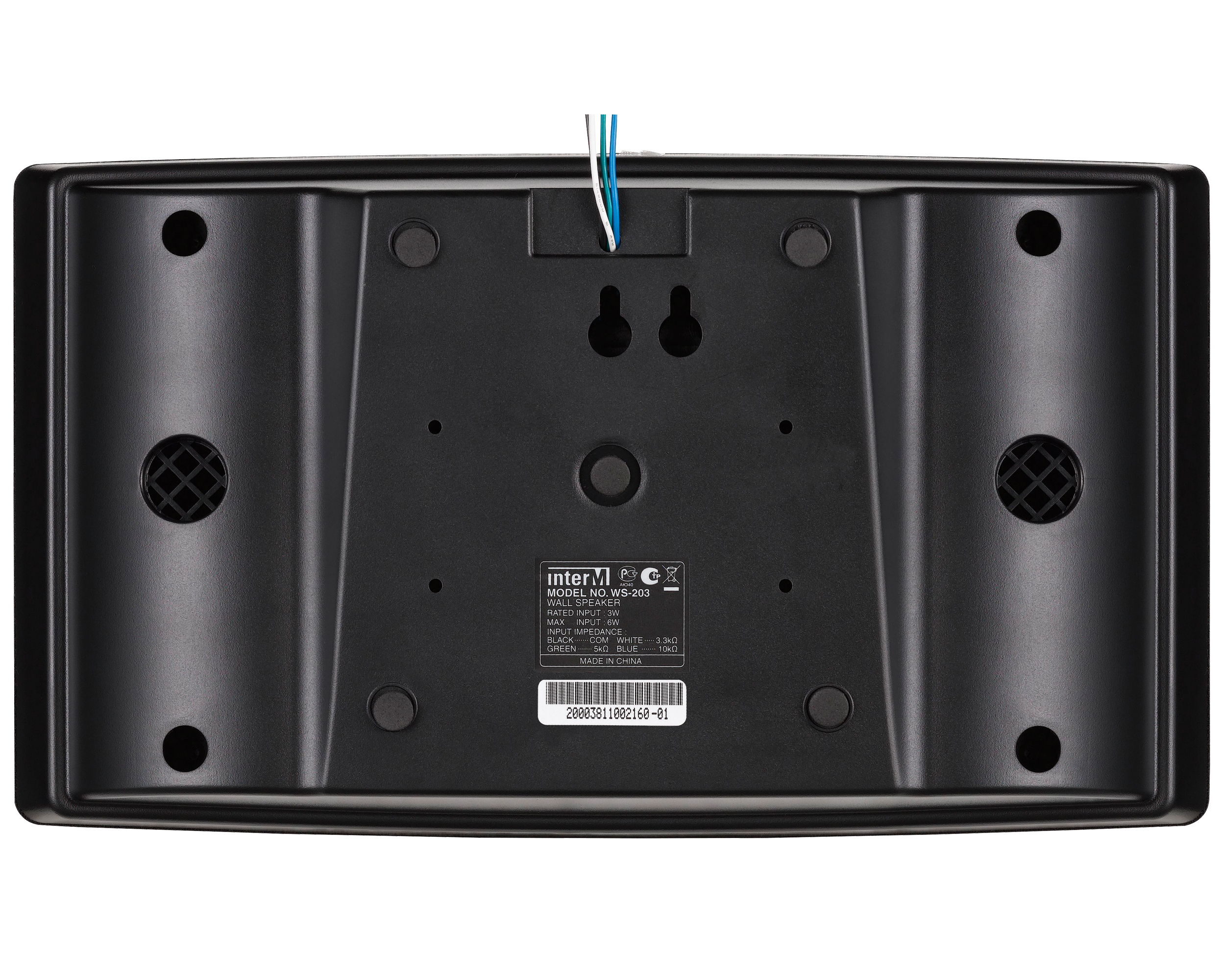

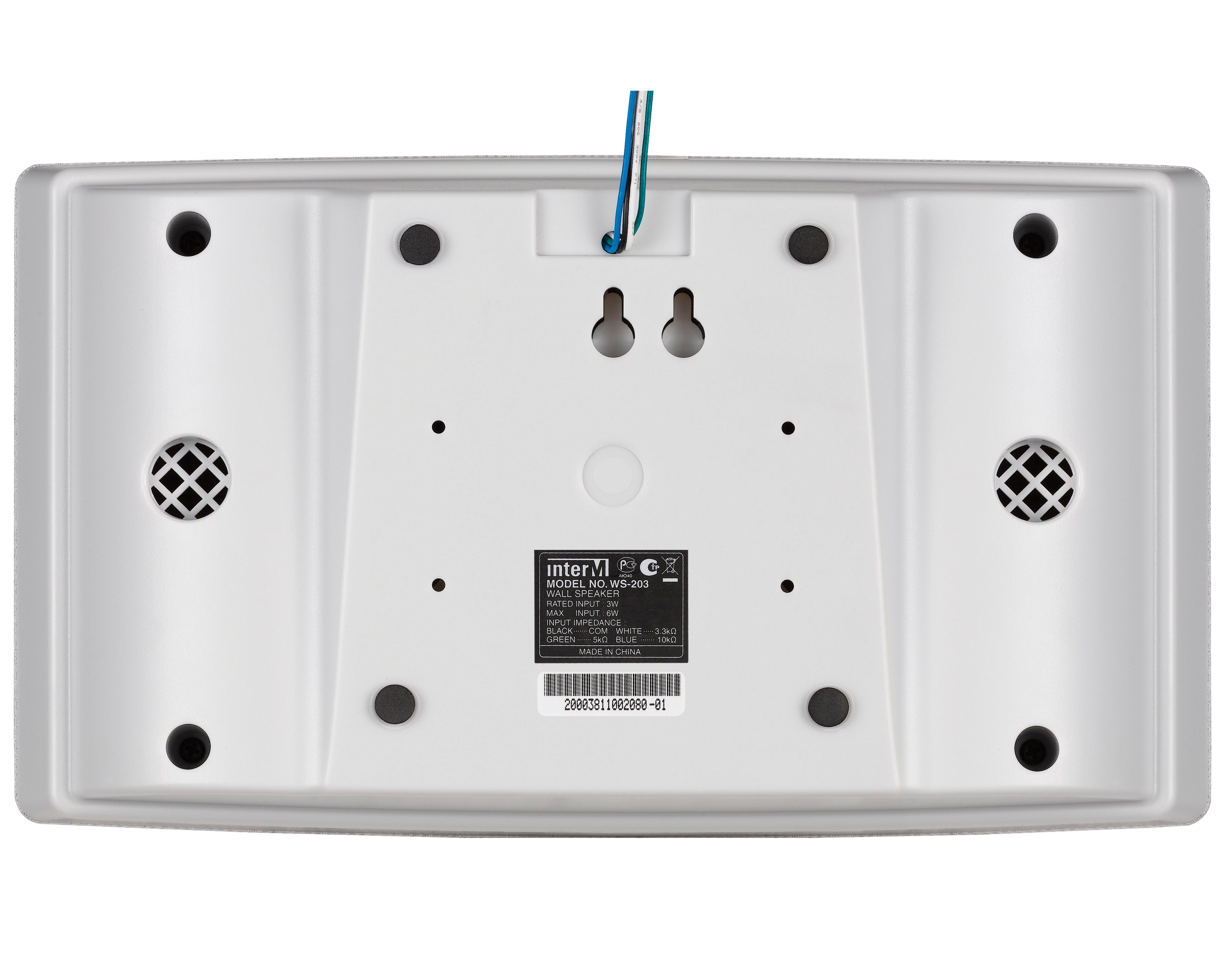

 WS-203
Type 6.5" Full-range Wall Speaker (Sub Cone)
Driver 6.5"
Power Handling (IEC) 3W
Input Power 100V 3W / 2W / 1W
Nominal Impedance 100V 3.3kΩ / 5kΩ / 10kΩ
Power Selection
Frequency Range (-20%)123Hz ~ 20kHz
Sensitivity (1W/1m) 87dB
Maximum SPL92dB
Nominal Dispersion (Conical) 1kHz 140˚ x 190˚
4kHz 40˚ x 50˚
Input connection Bi-Wired
Enclosure Material HIPS (V0)
Enclosure ColorBlack/Ivory
Grille Material Jersey
Grille Color Black/Ivory
Weight (Set) 1.1kg
Dimensions (Net, Ø(WxH)xD, mm) 315 x 183 x 103
Weather Resistant
Flame Resistant
Certification KS
Included Accessories Anchor bolt x 1
