CU-410F

Indoor Column Speaekrs

Download

  • Brochure

Product Features

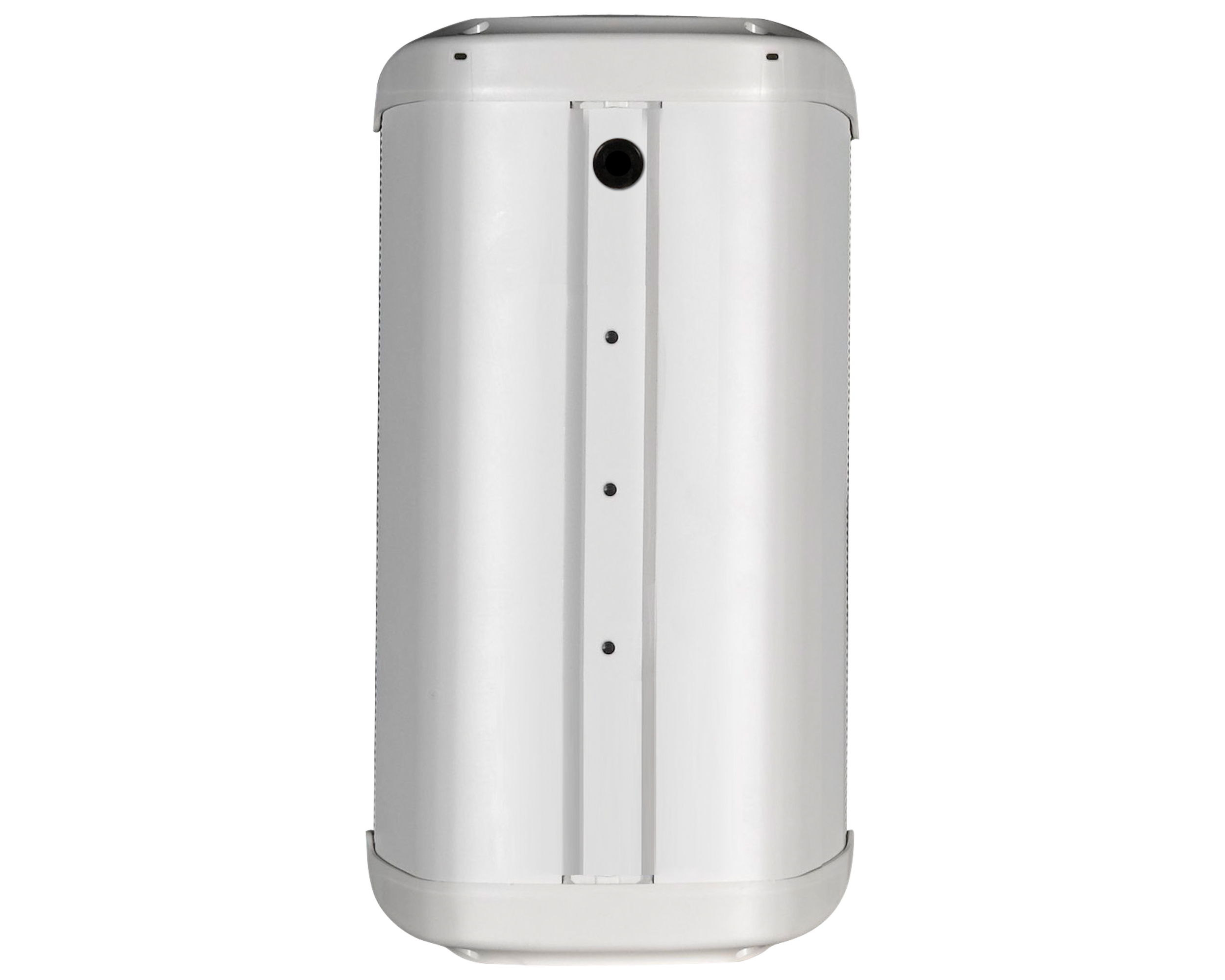

A New design of column speaker, is for indoor speaker, and it matches with interior very well. Also, the first column speaker that has the KS certification can be guaranteed high reliability and function and it provide a rich quality sound so it fit to multiple usage building such as department store.





Full-range driver

Using of high quality matching transformer
   * Wire type
   * Rotary switch type(Europe and US only)

Light gray color for matching with interior

User based design for fast installation

Direction adjustable with bracket

Product specification

 CU-410F
Type Single 4" Full-range Column Speaker
Driver 4" x 1
Power Handling (IEC) 10W
Input Power 100V 10/5W
Nominal Impedance 100V 1k/2kΩ
Power Selection By Wiring
Frequency Range (-20%) 115Hz ~ 20kHz
Sensitivity (1W/1m) 87dB
Maximum SPL97dB
Nominal Dispersion (Conical) 1kHz 190˚x130˚
4kHz 120˚x110˚
Input Connection Bi-Wired
Enclosure Material Case : AL, Top/Bottom : PP
Enclosure ColorLight Gray
Grille Material EGI Steel
Grille Color Light Gray
Weight (Net) 2kg
Dimensions (Net, WxHxD, mm) 156 x 300 x 129
Weather Resistant -
Flame Resistant
Certification KS
Included Accessories Wall Bracket
