Products

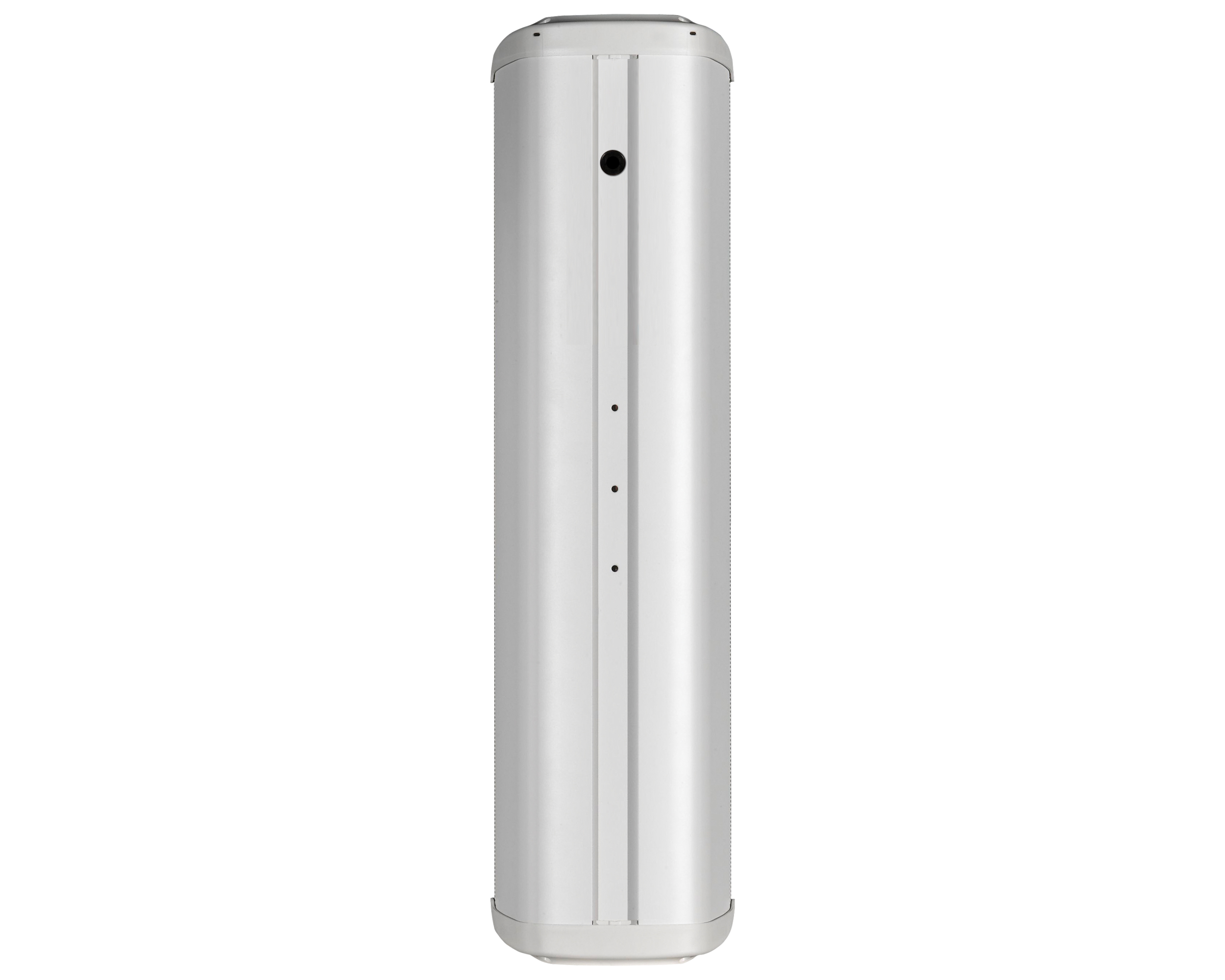

CU-440F

Indoor Column Speaekrs

Download

  • Brochure

Product Features

A New design of column speaker, is for indoor speaker, and it matches with interior very well. Also, the first column speaker that has the KS certification can be guaranteed high reliability and function and it provide a rich quality sound so it fit to multiple usage building such as department store.





Full-range driver

Using of high quality matching transformer
   * Wire type
   * Rotary switch type(Europe and US only)

Light gray color for matching with interior

User based design for fast installation

Direction adjustable with bracket

Product specification

 CU-440F
Type Quad 4" Full-range Column Speaker
Driver 4" x 4
Power Handling (IEC) 40W
Input Power 100V 40/20W
Nominal Impedance 100V 250/500Ω
Power Selection By Wiring
Frequency Range (-20%) 100Hz ~ 17.7kHz
Sensitivity (1W/1m) 92dB
Maximum SPL108dB
Nominal Dispersion (Conical) 1kHz 190˚ x 50˚
4kHz 110˚ x 10˚
Input Connection Bi-Wired
Enclosure Material Case : AL, Top/Bottom : PP
Enclosure ColorLight Gray
Grille Material EGI Steel
Grille Color Light Gray
Weight (Net) 4.8kg
Dimensions (Net, WxHxD, mm) 156 x 600 x 129
Weather Resistant -
Flame Resistant
Certification KS
Included Accessories Wall Bracket
