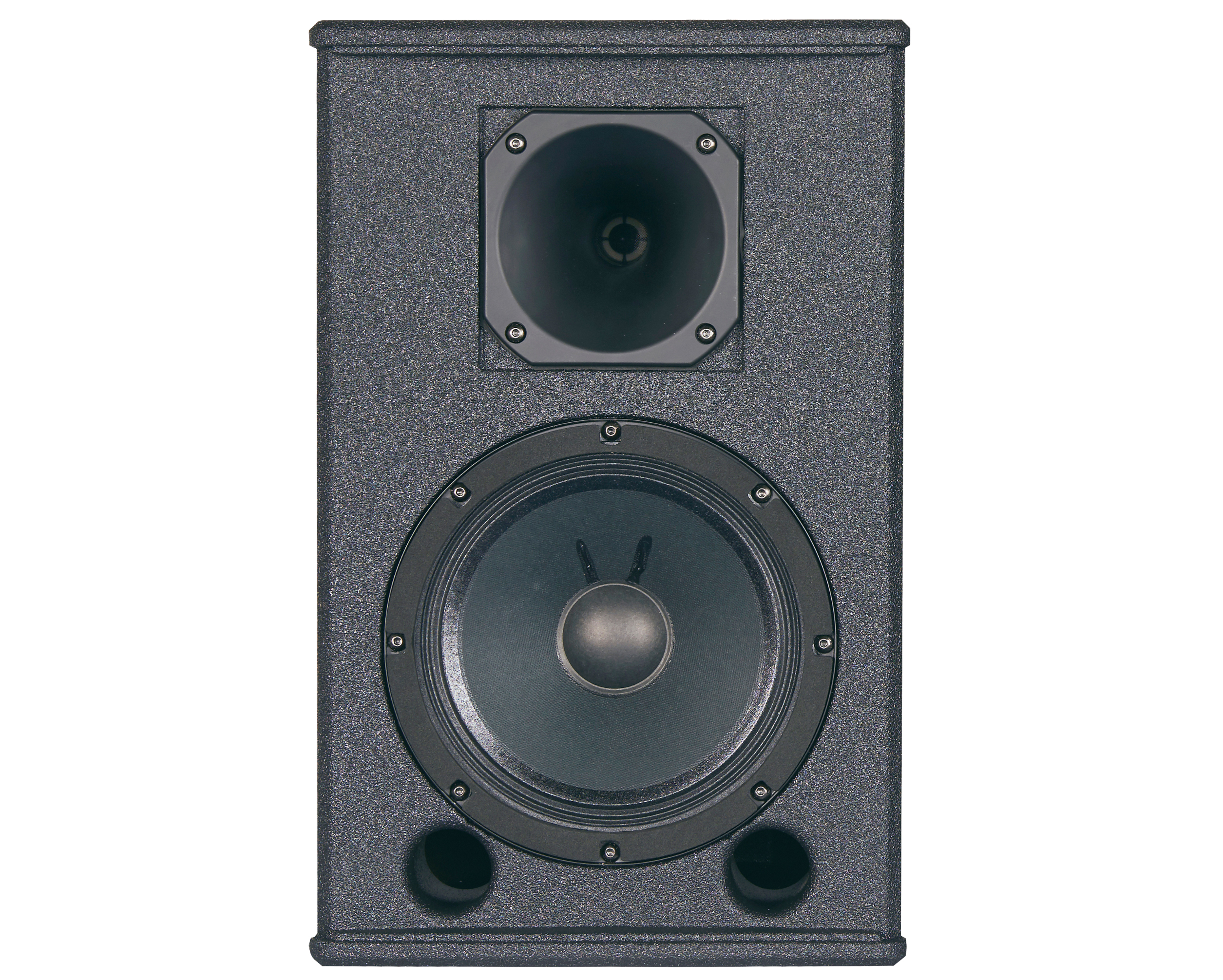

TE08

Professional Loudspeaker

Download

  • Brochure

Product Features

The TETRA series with trapezoid enclosures is fixed point source speaker that can be used in a variety of environments such as conference rooms, lobbies, religious facilities, and multipurpose auditoriums.

The TETRA series offers four output-specific lineups: 8"(130W), 10"(160W), 12"(300W) and 15"(400W). Multiple M10 rigging points, pole mount cups can be used to secure the installation.



■ Fixed point source speakers with trapezoidal enclosures

■ Adopting high power woofer and compression driver, TE series boasts rich tone especially in low band

■ Precise covering regardless of horizontal / vertical installation of the enclosure when installed fixed with Rotatable Horn

■ 6 or 8 insert points (M10)

■ 1 Pole Mount Cup

■ Users can use the TE series as main, side-fill, front-fill, balcony speaker, and etc.

Product specification

 TE08
Type 8" 2Way Passive Point Source
Frequency Response (±6dB)114Hz ~ 17kHz
Frequency Range (-10dB)93Hz ~ 18kHz
Power Handling (AES)130W
Power Handling (Program)260W
Power Handling (Peak)520W
Recommended Amplifier Power260W
Sensitivity (1W/1m)93dB
Maximum SPL (Peak)120dB
Nominal Dispersion153˚x187˚(1kHz) / 65˚x70˚(4kHz)
Nominal Impedance
Transformer Taps (70V/100V)-
LF Driver8" Woofer 1.46" voice coil
HF Driver1" Tweeter 1" voice coil
HornRound HORN (Square contour)
Enclosure Materialhigh-density MDF 15T, Polyurea Coating
GrilleSECC 1.5t, Powder Coating / BLACK

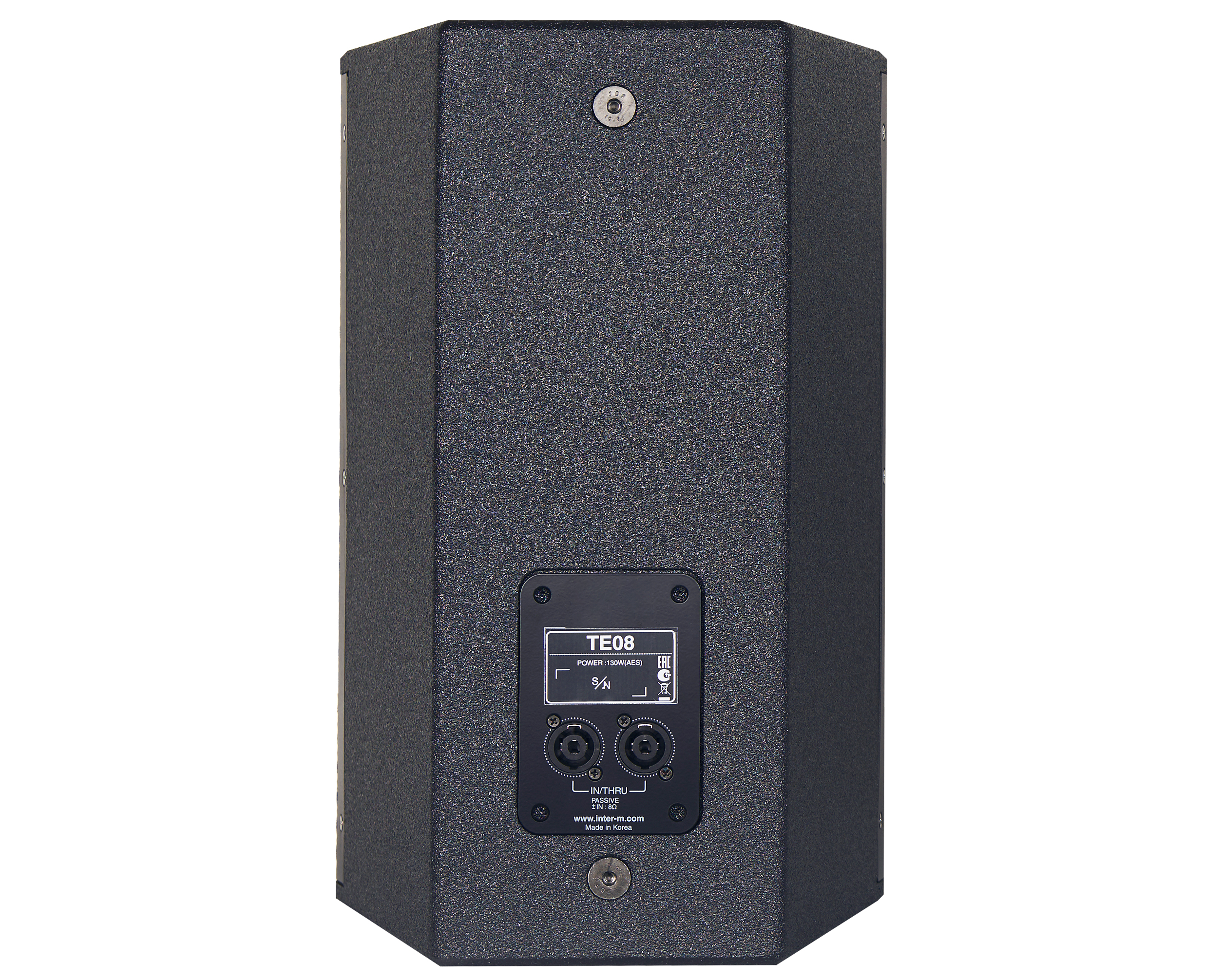

Connection2 X SPEAKON(1+,1-) [Parallel]
Fittings/Suspension6xM10 inserts(2xtop, 2xbottom, 2xrear)
FinishPolyurea Coating
ColorBLACK
Weights (Net)10.92kg/24lb
Dimensions (Net, W×H×D)276×435×285mm/10.9×17.1×11.2in
Optional AccessoriesSB-30HA (Wall Bracket)
