Coaxial 2 Way Passive Stage Monitor

Download

  • Manual

  • Brochure

Product Features

SM12 is a Coaxial 2-Way Passive Multi-purpose Stage Monitor Speaker. It shows consistent frequency response and directivity over the entire frequency range using the latest coaxial driver technology.

This technology ideally improves the situation in which traditional speakers with the structure of upper tweeter-lower woofer have inconsistent vertical frequency and directional response. It prevents the audience from hearing the even sound wherever they sit. In addition, a wider dispersion angle allows the listener to have a more flexible monitoring environment, allowing him/her to use this equipment more diversely.

Its easy-to-carry handle provides easy transportation, and it can be used as a main speaker as well as a monitor speaker with M10 rigging points and a pole cup that can be installed on the speaker stand. The best sound for professional users is reproduced by the rich bass from the birch enclosure and the vivid treble from the large tweeter.



■ 12" Passive(2-way coaxial) Stage Monitor
■ Coverage angles (H×V) : 60°×40°
■ Monitor Angle 40°
■ Handle for easy transportation
■ Black polyurea coating
■ M10 rigging points for various installations

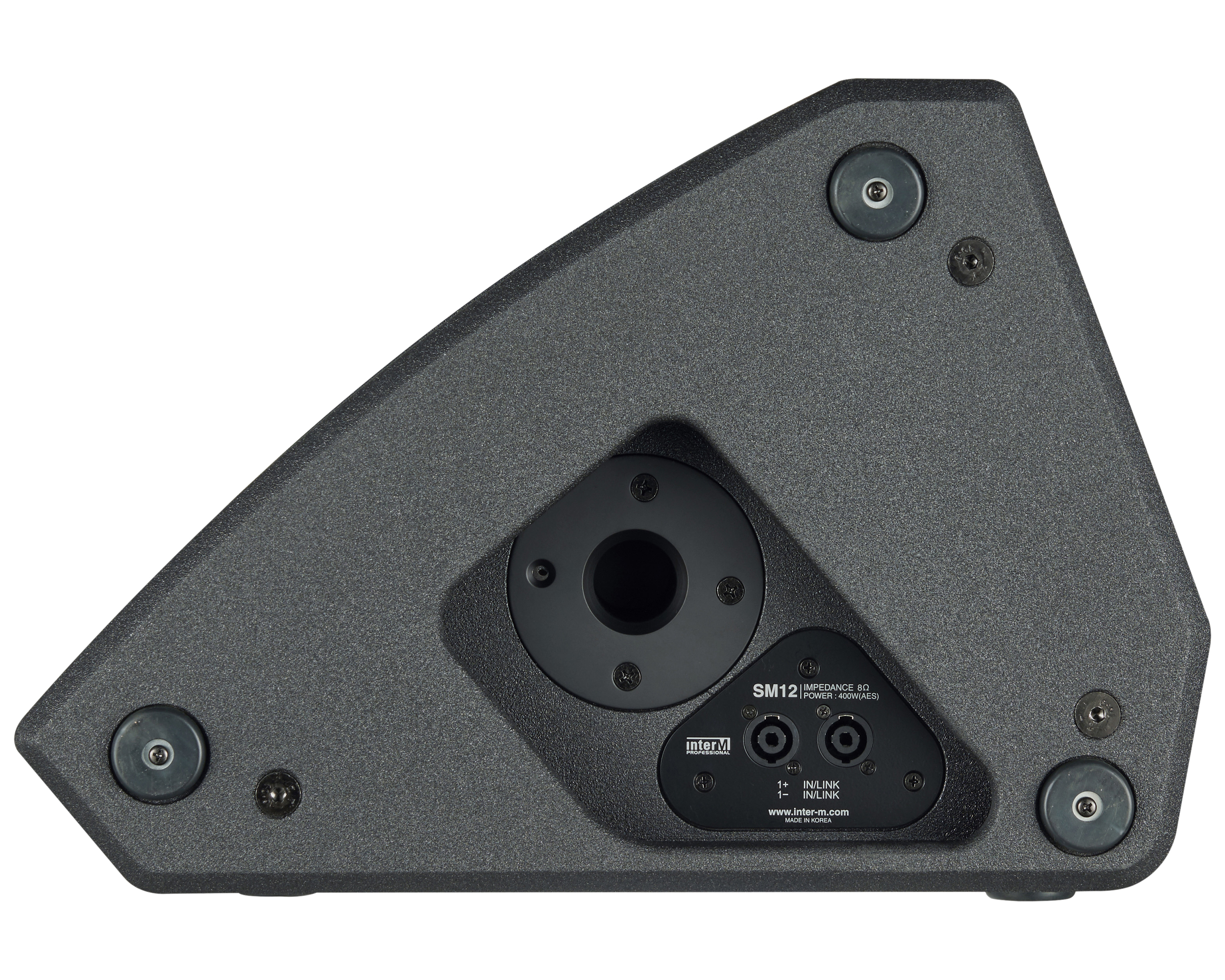

■ Socket for Pole Standing
■ Rubber foot for speaker protection and fixation

Product specification

 SM12
Type 12" Coaxial 2Way Passive Stage Monitor Speaker
Frequency Range (-10dB)65Hz ~ 20kHz
Power Handling (AES)400W
Power Handling (Program)800W
Power Handling (Peak)1600W
Recommended Amplifier Power800W
Sensitivity (1W/1m)96dB
Maximum SPL (Peak)128dB
Nominal Dispersion1kHz : 100°×95°, 4kHz : 60°×40°
Nominal ImpedanceLF : 8Ω/HF : 8Ω
LF Driver12" Coaxial 3" Voice Coil
HF Driver12" Coaxial 1.7" Voice Coil
Horn60º×40º Coverage Horn
Enclosure MaterialBirch Plywood 18T, Polyurea Coating
GrilleSECC 1.5t, Powder Coating/BLACK
Connection3×SPEAKON (1+,1-) [Parallel]
Fittings/Suspension14 Point M10 inserts(4×Rear, 4×Bottom, 3×Left, 3×Right)
FinishPolyurea Coating
ColorBLACK
Weights (Net)23.8kg/52.5lb
Dimensions (Net, W×H×D)502×352×508mm/19.7×13.8×19.9
 LF Unit HF Unit
Nominal Diameter 321mm(12") 321mm(12")
Nominal Impedance 8Ω 8Ω
Rated Power AES400W 60W
Continuous Program Power800W 120W
Sensitivity (@ 1W/1m)98.0dB 106.2dB
Voice Coil Diameter 75mm(3in) 44mm(1.7in)
Voice Coil Winding Depth 15mm 2.6mm
Magnetic Gap Depth 10mm 3mm
HF Recomm. Crossover Frequency -1.6kHz
Magnet Weight 2.7kg 2.7kg
Weights (Net)8.3kg 8.3kg
