Product Features

■ High quality drivers
■ Compact acoustical enclosure
■ Solid and precise rigging system
■ Rugged enclosure-VOID FREE
■ Built-in advanced crossover network
■ EASE data available

Product specification

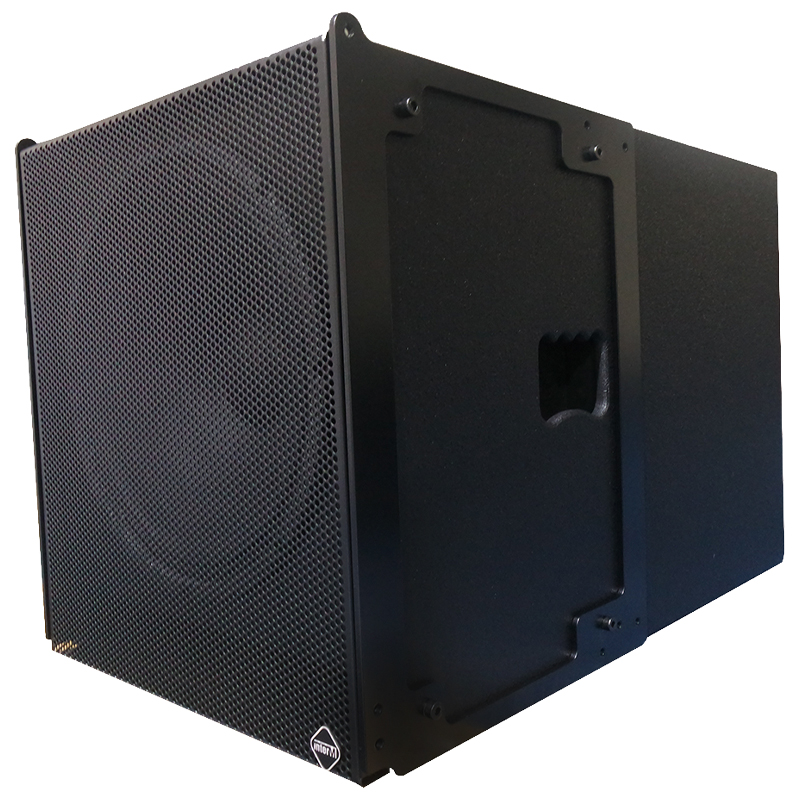

	NLA-15S
Type	15"Line Array Subwoofer
Frequency Response (±3dB)	67Hz ~ 2.8kHz
Frequency Range (-10dB)	28Hz ~ 3.5kHz
Rated Power (AES)	600W
Rated Power (Program)	1200W
Rated Power (Peak)	2400W
Recommended Amplifier Power	1200W
Sensitivity (1W/1m)	99dB
Maximum SPL (Peak)	133dB
Nominal Dispersion	OMNI
Nominal Impedance	8Ω
Crossover Point	100Hz, 24dB/oct, LR Filter
LF Driver	15" Woofer 3" voice coil
HF Driver	-
Horn	-
Enclosure Material	EUCALYPTUS 15T, Textured black RoHS compliant paint
Grille	SECC 1.5t, Powder Coating/BLACK
Connection	2×SPEAKON (1+,1-) [Parallel]
Fittings/Suspension	4Point flying rigging
Finish	Textured black RoHS compliant paint
Color	BLACK/WHITE
Weights (Net)	32.3kg/71.2lb
Dimensions (Net, W×H×D)	477×518×741mm/18.8×19.9×29.2in
Optional Accessories	NLA-5 Frame (Bolt/Pin type)
